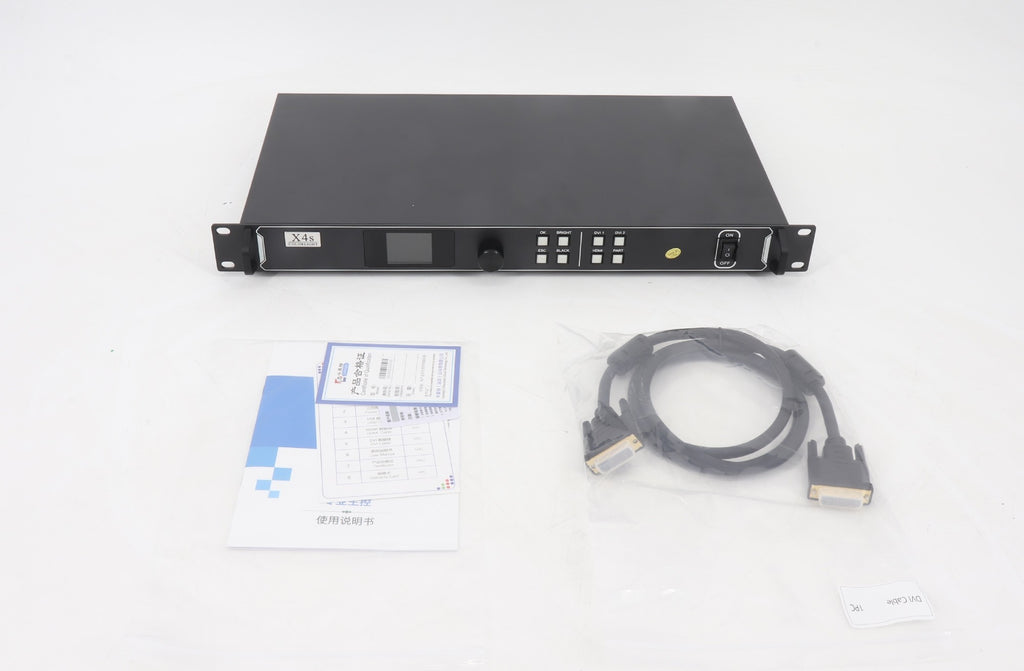

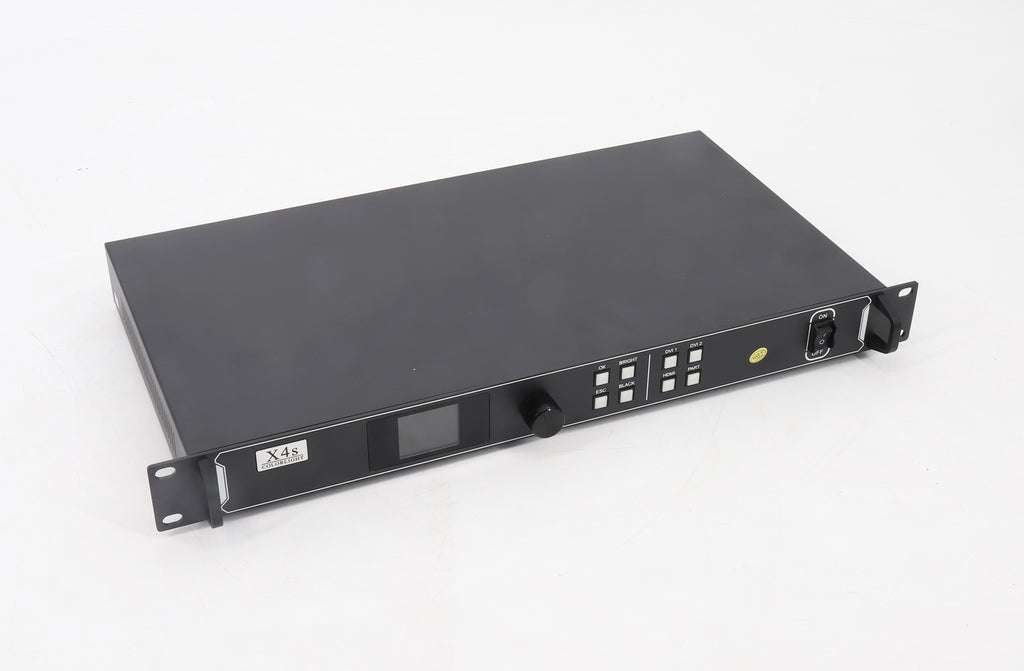

Novastar VX4S LED Video Processor Details
Novastar VX4S LED Video Processor is a professional LED display controller.
it also features in powerful front end processing, so it doesn’t need an external scalar.
Novastar VX4S Video Processor features
|Overall Power Consumption||25W|
|Dimensions||482.6mm × 251.5mm × 45mm|
|Package dimensions||550mm × 400mm × 175mm|
|Net weight||2.55 Kg|
|Total weight||5.5 kg|

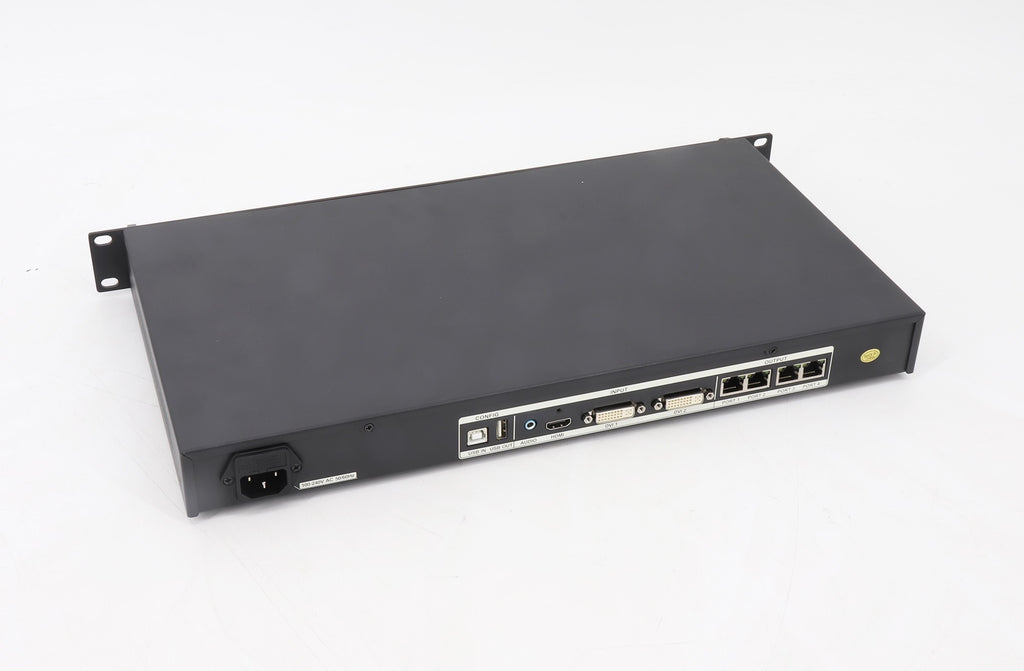

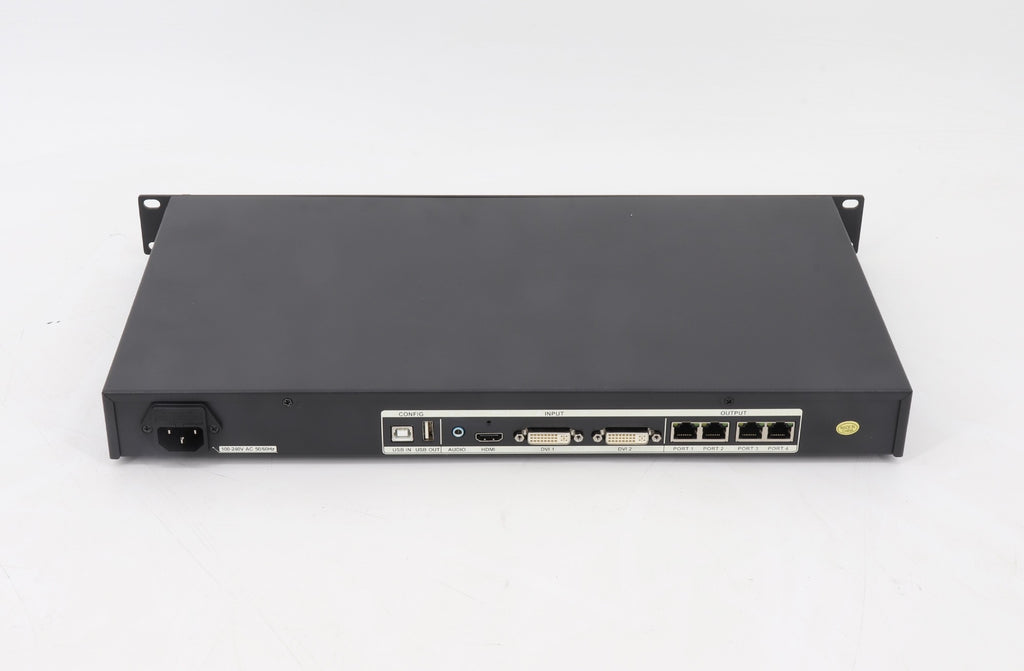

- The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution.
- Provide seamless high-speed switching and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality.
- The location and size of PIP can both beadjusted, which can be controlled at will.
- Adopt the NovaStar G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth.
- Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors.
- HDMI/external audio input.
- 10bit / 8bit HD video source;
- The loading capacity: 2.3 million pixels.
- Support multiple controller montage for loading huge screen.
- Support NovaStar’s new-generation point-by-point calibration technology; the calibration is fast and efficient.
- Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All operations can be done in a few steps. That’s what we call Easy Screen Configuration!
- Adopt an innovative architecture to implement smart configuration; the screen debugging can be completed within several minutes; greatly shorten the preparation time on the stage.

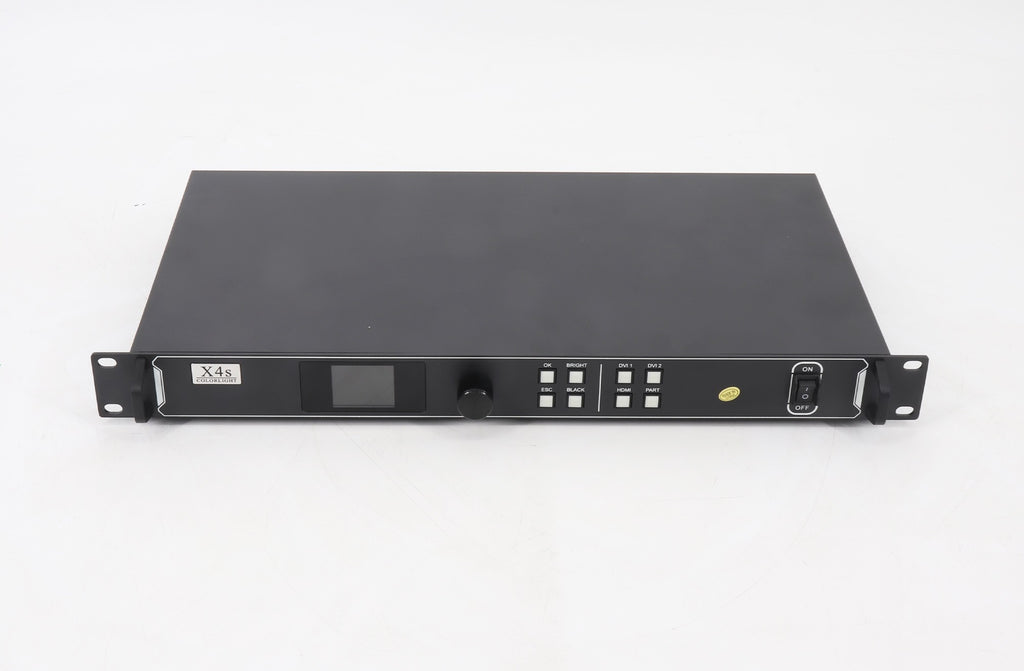

- An intuitive LCD display interface and clear button light hint simplify the control of the system.
