Description

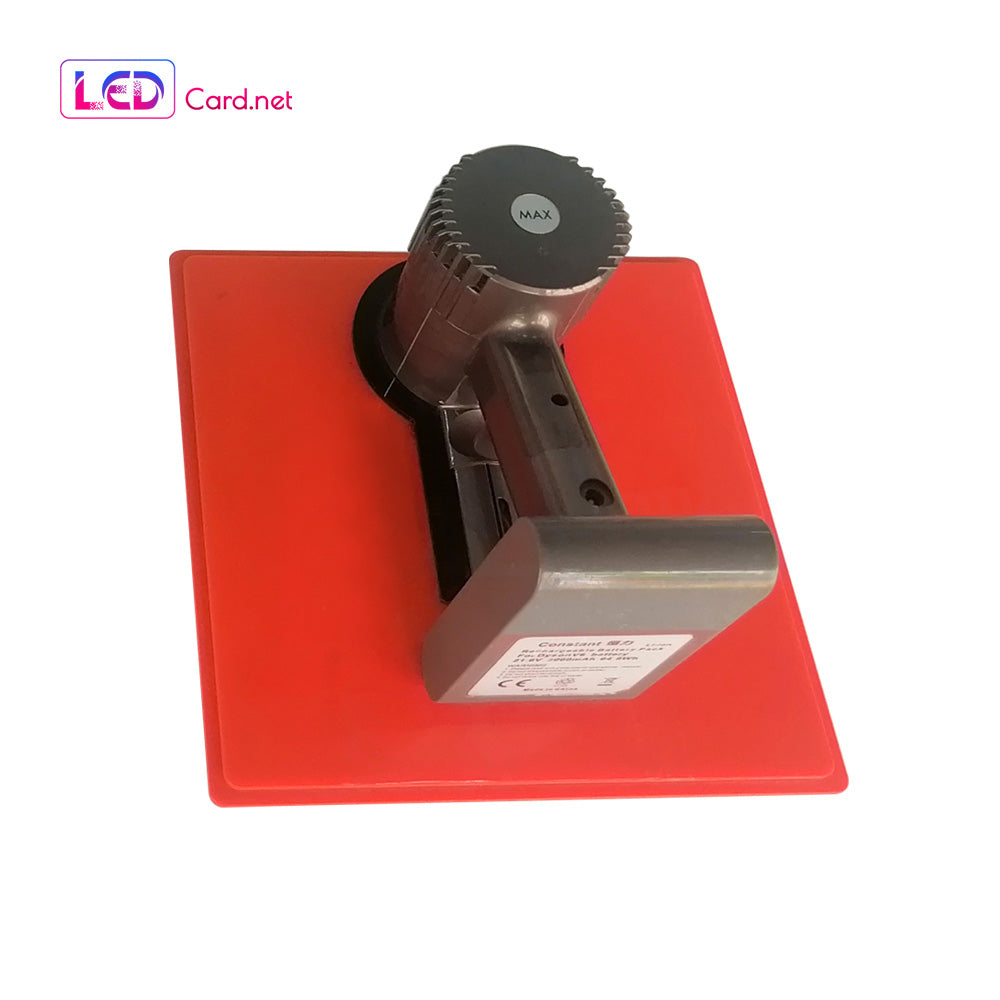

LED Display Vacuum Front Maintenance Tool draws out the internal air to form a negative pressure, and the module fixed by the magnet is taken out by the pressure difference.
Suction Cup size：250mm(H)x250mm(W)
Suitable LED Module Size: 250mm(H)*250mm(W)
Tool parameter
Front maintenance suction tool
Front Maintenance Inhalation Tool
Motor: Dyson Dyson V6 (UK)
Machine parameters (Maain technical data)
Rated voltage: 21.6v
Rated power: 350w
Battery capacity: 3000mah
Powerful mode (MAX): 110AW
Standard mode (Standard): 28AW
Noise (DB): MAX87db
Charging instruction:
Plug the charger into the socket, DC end insert into the charging stand, open the main switch,
check the charge status through the battery indicator, after being fully charged, turn off the main switch, pull out the charger. For emergency use, this tool supports use while charging, but
this function has an impact on battery life, suggest to use only in emergency situations.
Product Feture
1、Small size, light weight, easy to carry；
2、Excellent ergonomic design for easier use；
3、Vacuum valve design for more models；
4、Unique air duct design for better heat dissipation and longer motor life；
5、Unique limit design prevents PCB warp and light falling off）；
6、Unique anti-static design to protect module security；
7、User-friendly backpack design, safer work at height；
8、Supports use while charging, solve the temporarily no power；
9、Suitable for all series of modules, more universal
Packing
Tool description and applicable display model
Net weight/Gross weight (NW/GW): 1.5KG./2.0KG
Volume（L*W*H）：175mm*139mm*216mm
