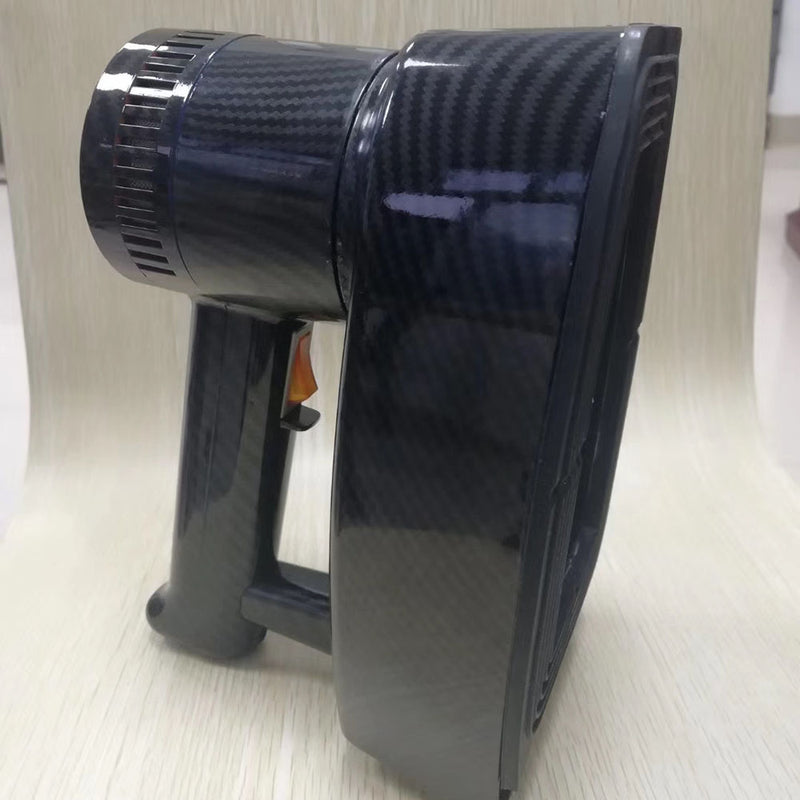

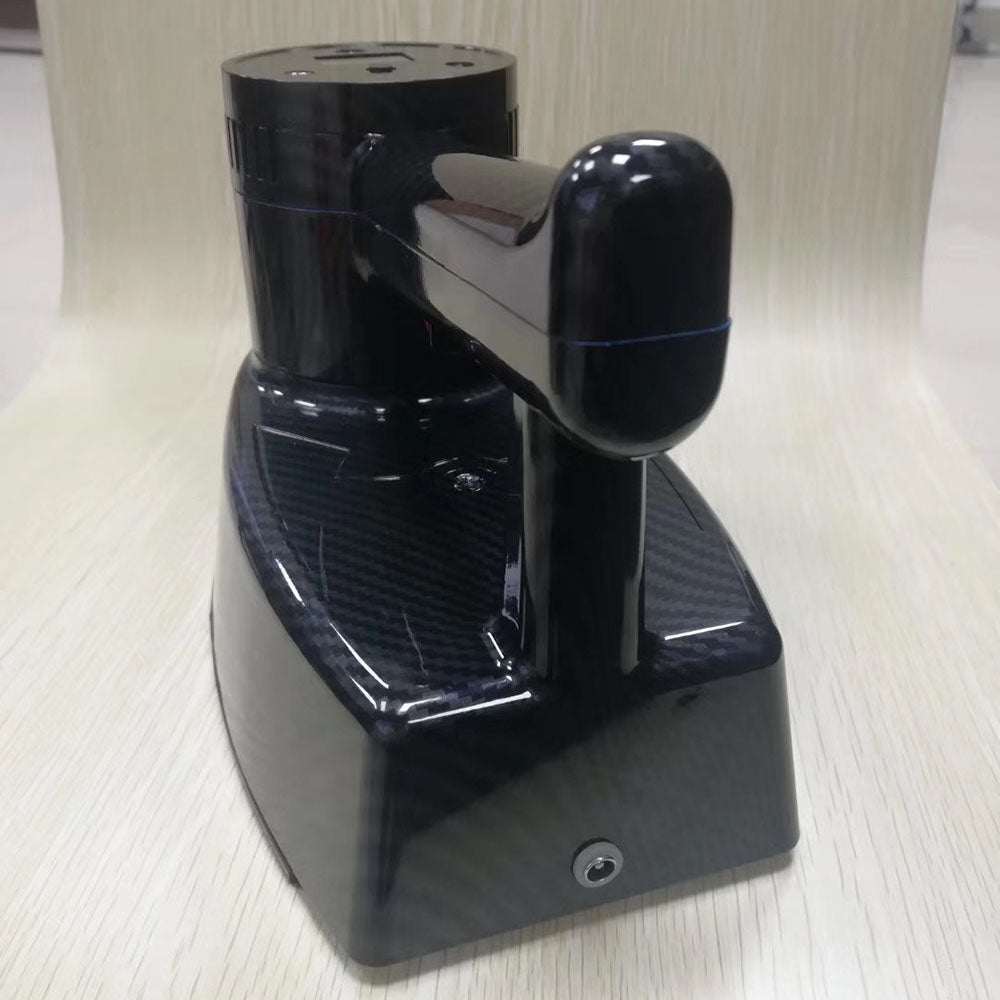

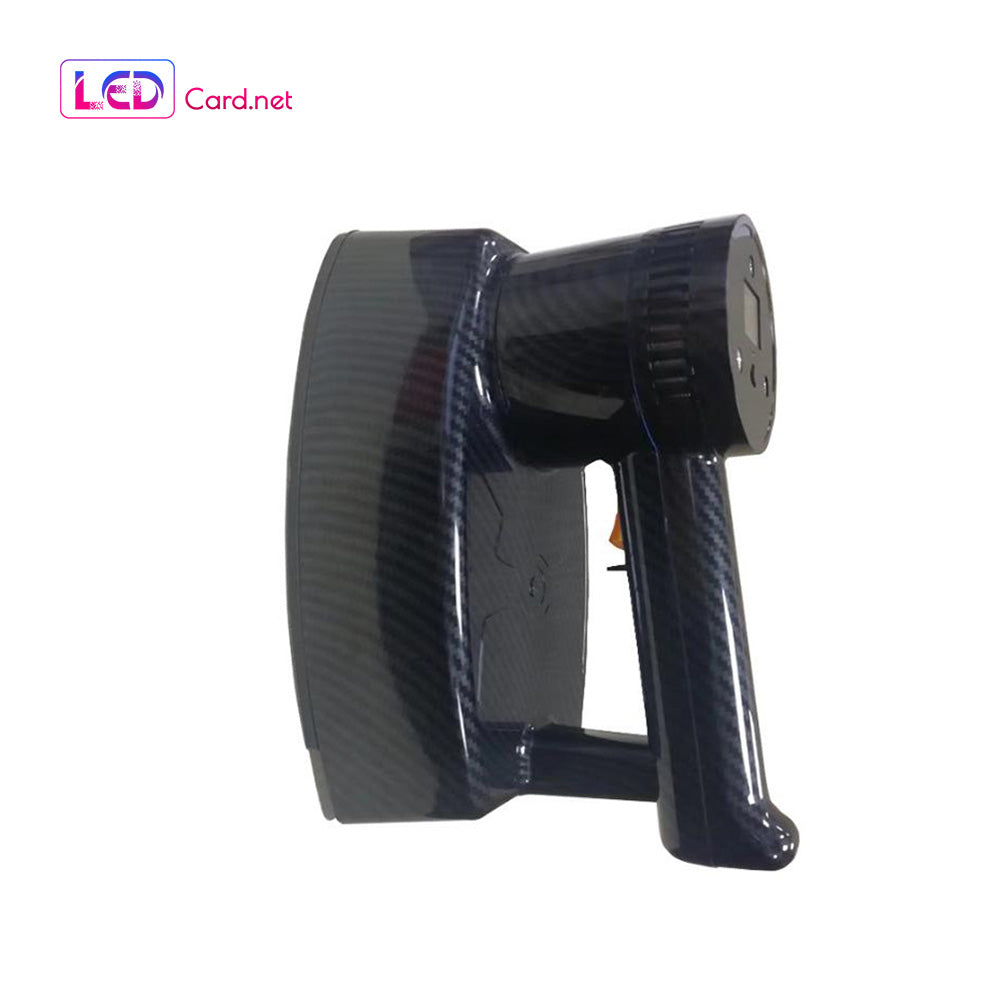

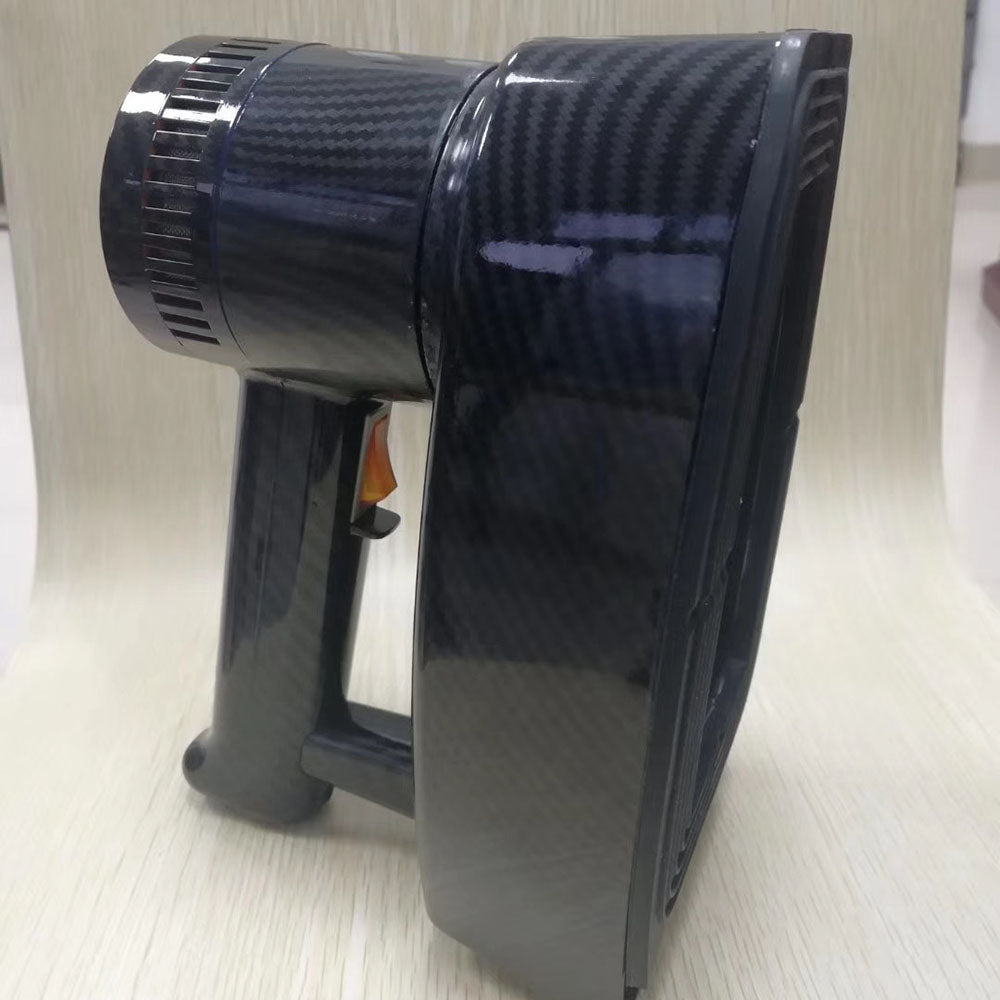

DM-M1 LED Display Vacuum Front Maintenance Tool LED Module Picker

LED Display Vacuum Front Maintenance Tool draws out the internal air to form a negative pressure, and the module fixed by the magnet is taken out by the pressure difference.

 Suction Cup size： 135mm(H)*90mm(W)

  Suitable LED Module Size:  192mmx192mm

Tool parameter

1.Charger charging voltage ：100-240V

Charger output voltage：26V0.8A

（Continuous discharge duration）：20MIN

Note: This data is laboratory data, change according to the use environment, data will fluctuate

Standby power consumption：10uA

Working environment：-20℃-45℃ 15%-85%R

Charger charging voltage220: V/50Hz

Power Consumption:  300W

Working environment：-20℃-45℃ 15%-85%RH

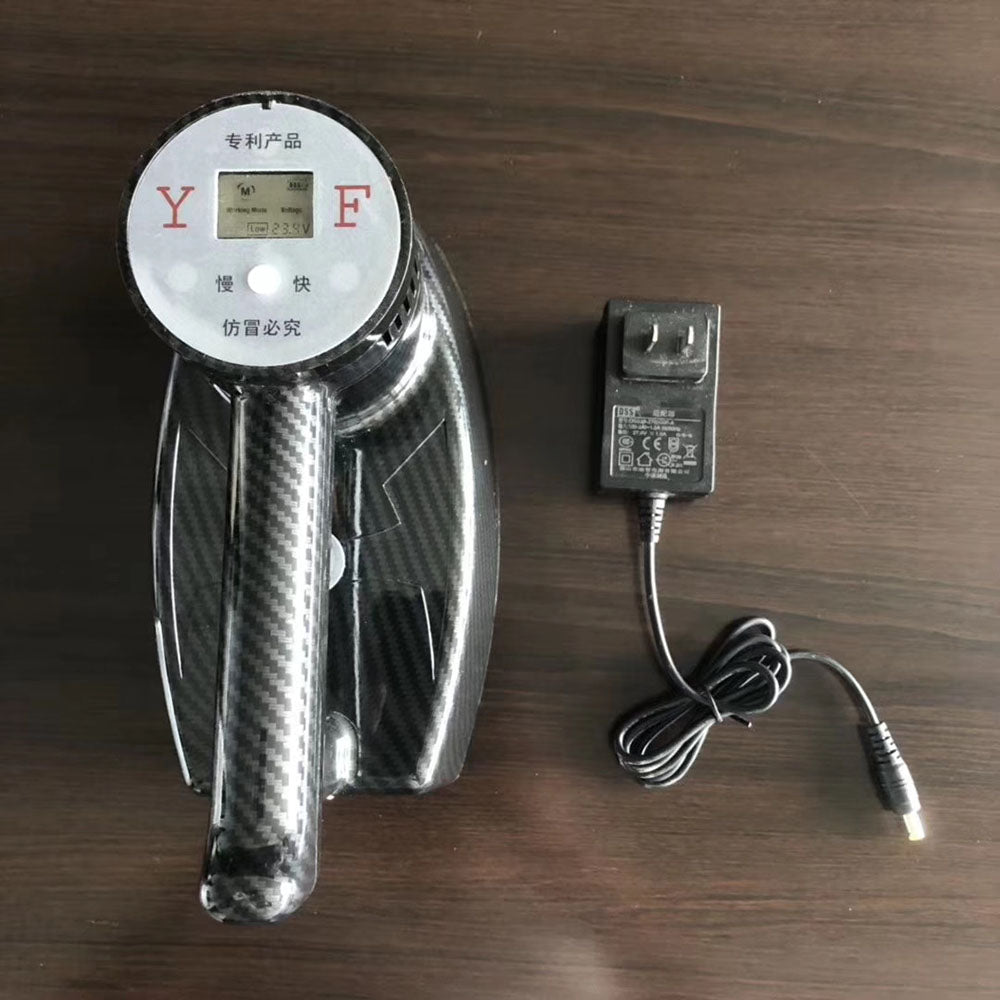

Charging instruction:

Plug the charger into the socket, DC end insert into the charging stand, open the main switch,

check the charge status through the battery indicator, after being fully charged, turn off the main switch, pull out the charger. For emergency use, this tool supports use while charging, but

this function has an impact on battery life, suggest to use only in emergency situations.

Product Feture

1、Small size, light weight, easy to carry；

2、Excellent ergonomic design for easier use；

3、Vacuum valve design for more models；

4、Unique air duct design for better heat dissipation and longer motor life；

5、Unique limit design prevents PCB warp and light falling off）；

6、Unique anti-static design to protect module security；

7、User-friendly backpack design, safer work at height；

8、Supports use while charging, solve the temporarily no power；

9、Suitable for all series of modules, more universal

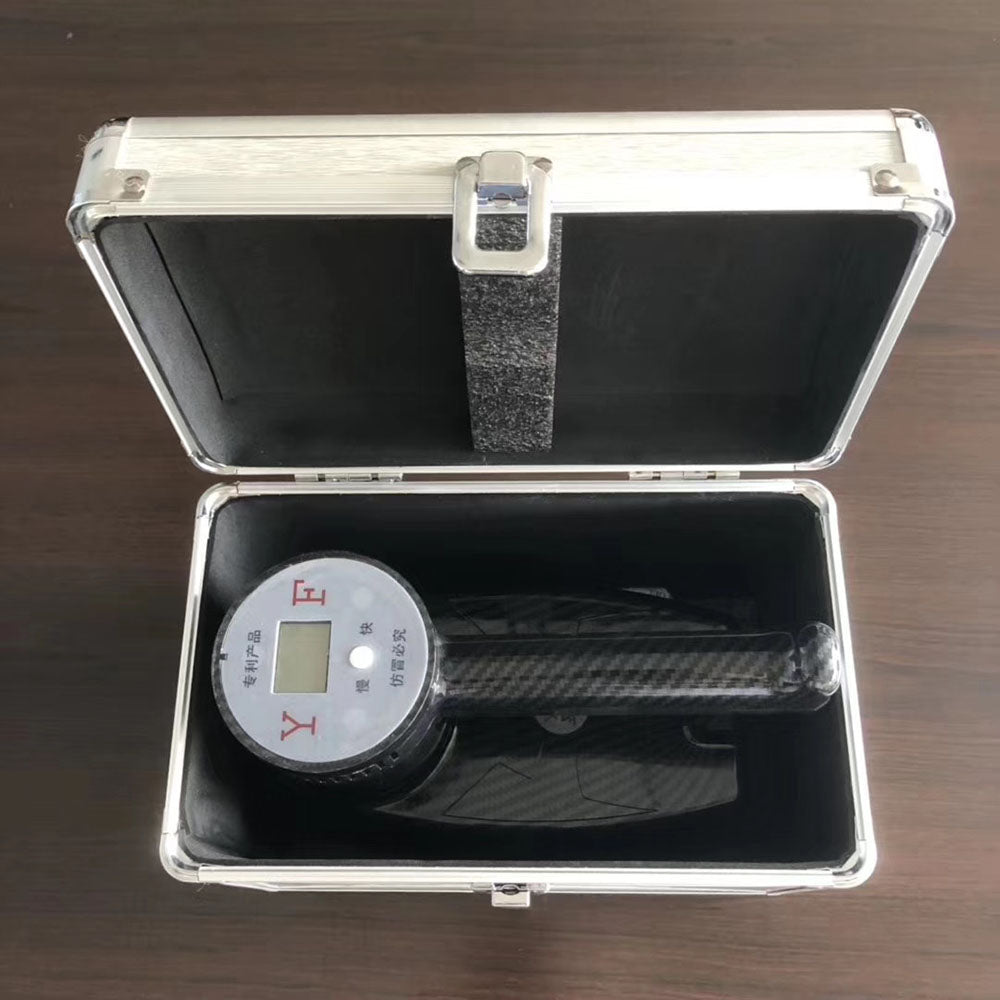

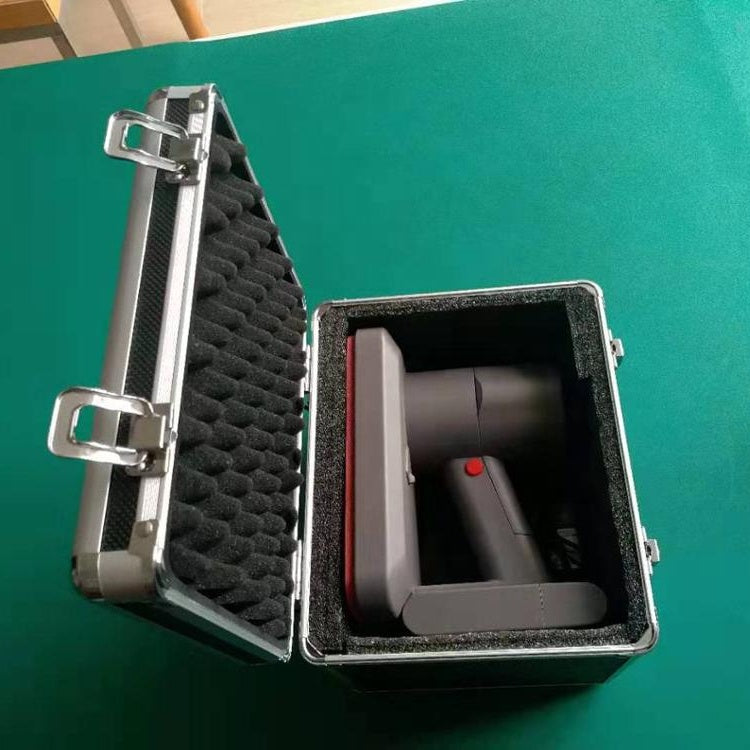

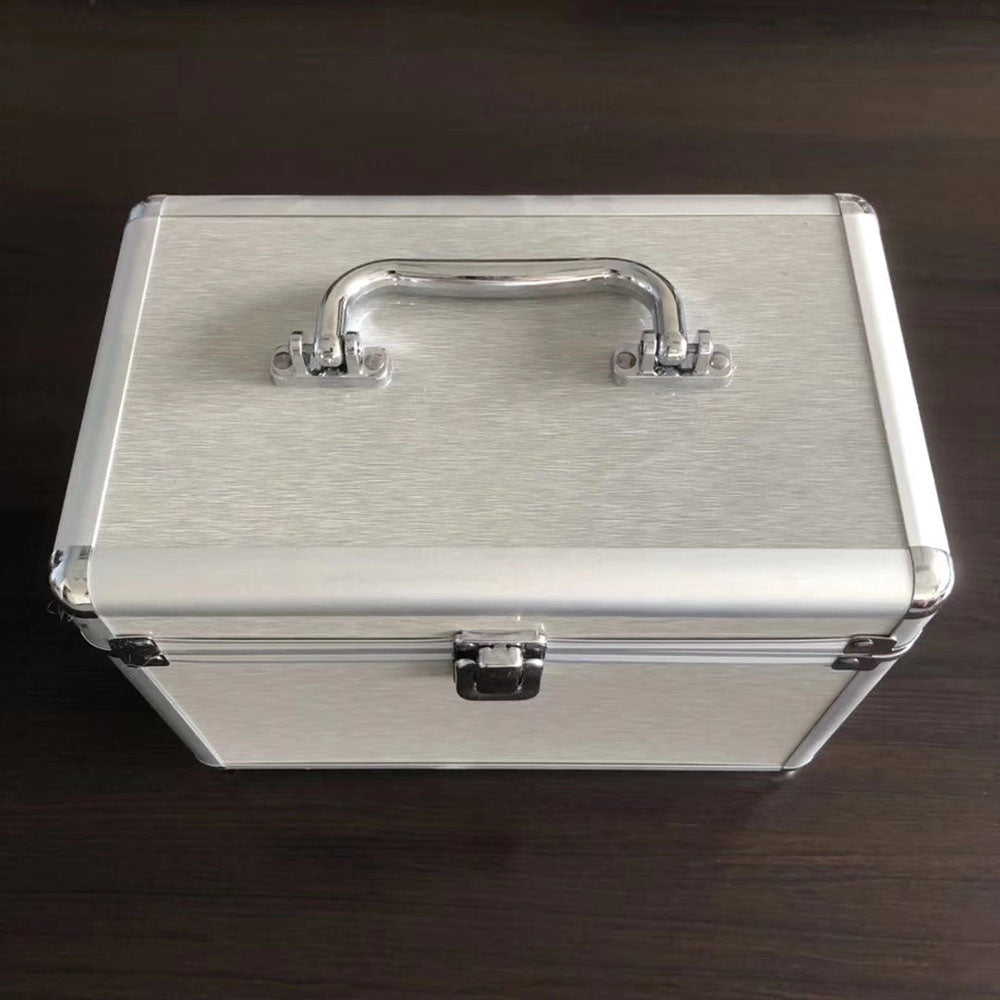

Packing

Tool description and applicable display model

（Product  weight）: 2.5kg

Volume（L*W*H）：175mm*139mm*216mm
