Meanwell LRS-350-4.2 4.2V60A 252W Input Voltage Selectable LED Power Supplies


Price:
Sale price$35.00

Description

Product Name:

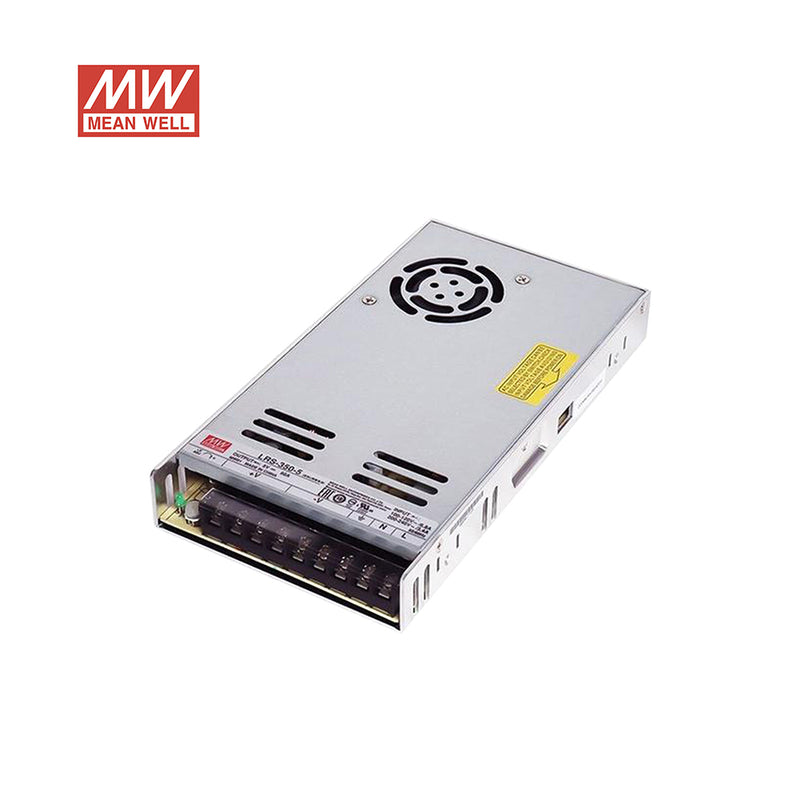

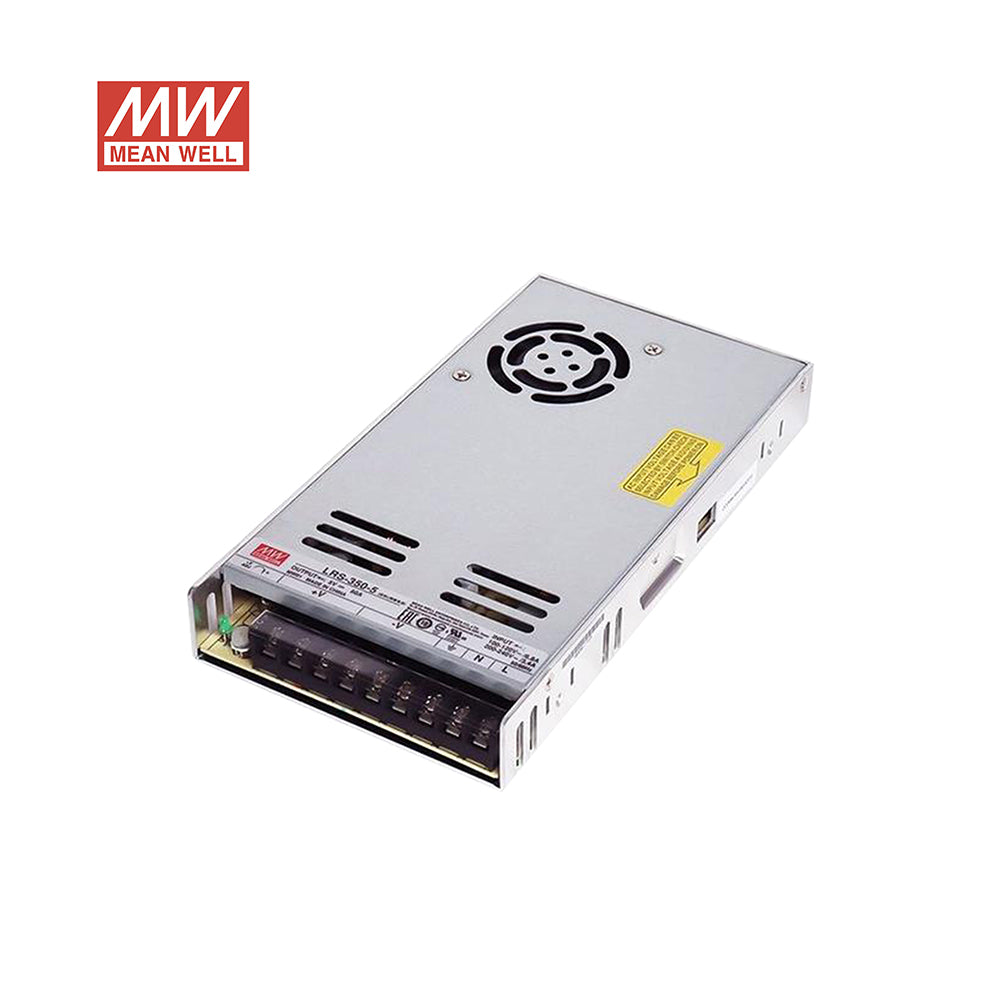

MeanWell LRS-350-5 Switching Power Source (5V 60A 300W)

Case:806 Size:215×115×30mm
Power: 300W
100% full load burn-in test
Universal AC input/ full range
Built-in active PFC function, PF>0.95
Protections: Short circuit/ Over load/ Over voltage
LED indicator for power on
1 year warranty
UL  passed

Product Specifications :

Model LRS-350-5
Input Voltage Range 85~ 264VAC 120~ 370VAC
FREQUENCY RANGE 47 ~ 63Hz
AC CURRENT (Typ.) 3.5A/115VAC 1.5A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
INRUSH CURRENT (Typ.) COLD START 65A/230VAC
EFFICIENCY (Typ.) 83%
Output RATED CURRENT 60A
DC VOLTAGE 5V
RATED POWER 300W
CURRENT RANGE 0-60A
VOLTAGED ADJ. RANGE 4.5~ 5.5V
RIPPLE & NOISE (max.) Note.2 150mVp-p
VOLTAGE TOLERANCE Note.3 ±2.0%
LOAD REGULATION Note.5  ±1.5%
LINE REGULATION Note.4  ±0.5%
HOLD UP TIME 20ms at full load
SETUP, RISE TIME 600ms,40ms at full load
Protection OVER VOLTAGE 5.75~ 6.75V
Protection type :Shut off 0/p volltage, clamping by zener diode
OVER LOAD Above 150% rated output power
Protection type :Hiccup mode, recovers automatically after fault condition is removed
Safety WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
SAFETY STANDARDS Note 6 UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 approved
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC STANDARDS EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254
Environment  WORKING HUMIDITY  20 ~ 90% RH non-condensing
 WORKING TEMP  -20 ~ +70 (Refer to output load derating curve)
 TEMP. COEFFICIENT  ± 0.03%/℃ (0 ~ 50℃)
 STORAGE TEMP., HUMIDITY  -40 ~ +85 , 10 ~ 95% RH
 VIBRATION

 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

 Others  DIMENSION  215*115*30mm (L*W*H)
MTBF 1608.8K hrs min. MIL-HDBK-217F (25 ) ℃
Note I. Al parameters NOT specialy mentioned are measured at 230VAC input. rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz Of bandwidth by usig a I2' twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor
3. Tolerance : includes set up tolerance. line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion.
7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that
 it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to 'EMI testing of component power supplies'
