Description

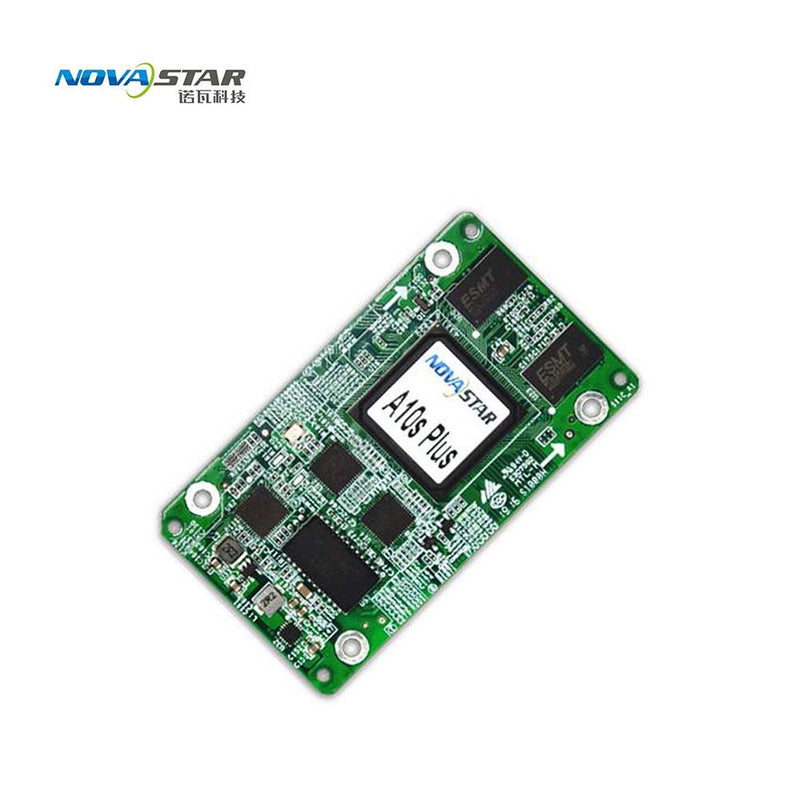

Novastar A10S Plus High-end Large LED Panel Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 groups of serial data.
Novastar A10S Plus High-end Large LED Panel Receiving Card Features:
Advanced Hardware Design:
- The small hardware footprint saves cabinet space and is suitable to a variety of applications.
- Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability.
- Integrated network transformer features simple design and improved electromagnetic compatibility.
Useful Software Design:
- Supports up to 1/64 Scan.
- Supports the following functions when working with NovaLCT (V5.2.0 and later)
- Supports random order scanning of module.
- Lights the modules with data row extracting and channel extracting.
- Supports precise grayscale correction.
- Supports individual Gamma adjustment for RGB.
- Supports bit error detection.
- Supports HDR function.
- Supports low latency function.
- Supports 18Bit+ to display image with high brightness or low grayscale.
- Supports ClearView high image quality display.
- Supports LVDS transmission (supported by dedicated firmware program).
- Supports smart module (supported by dedicated firmware program).
- Supports quick seam correction.
- Supports 3D function
- Supports auto module calibration.
- Supports Mapping function.
- Supports setting of pre-stored image on receiving card.
- Supports module Flash management.
- Supports voltage and temperature monitoring of card without use of peripherals.
- Supports cabinet LCD.
- Supports image rotation in 90° increments.
- Supports display rotation at any angle.
Novastar A10S Plus High-end Large LED Panel Receiving Card Parameter:
Maximum Loading Capacity | 512×512 pixels | |
Input voltage | DC 3.3 V– 5.5 V | |
Rated current | 0.5 A | |
Electrical Parameters | Rated power consumption | 2.5 W |
Operating Environment | Temperature | -20°C–70°C |
Humidity | 10% RH–90% RH, non-condensing | |
Storage Environment | Temperature | -25°C–125°C |
Humidity | 10% RH–90% RH, non-condensing | |
Packing Information | Packing specifications | An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 40 receiving cards. |
Packing box dimensions | 378.0 mm × 190.0 mm × 120.0 mm | |
Dimensions | 80.0 mm × 45.0 mm ×7.3 mm | |
Net Weight | 22.3 g | |
Certifications | RoHS, EMC Class B |
