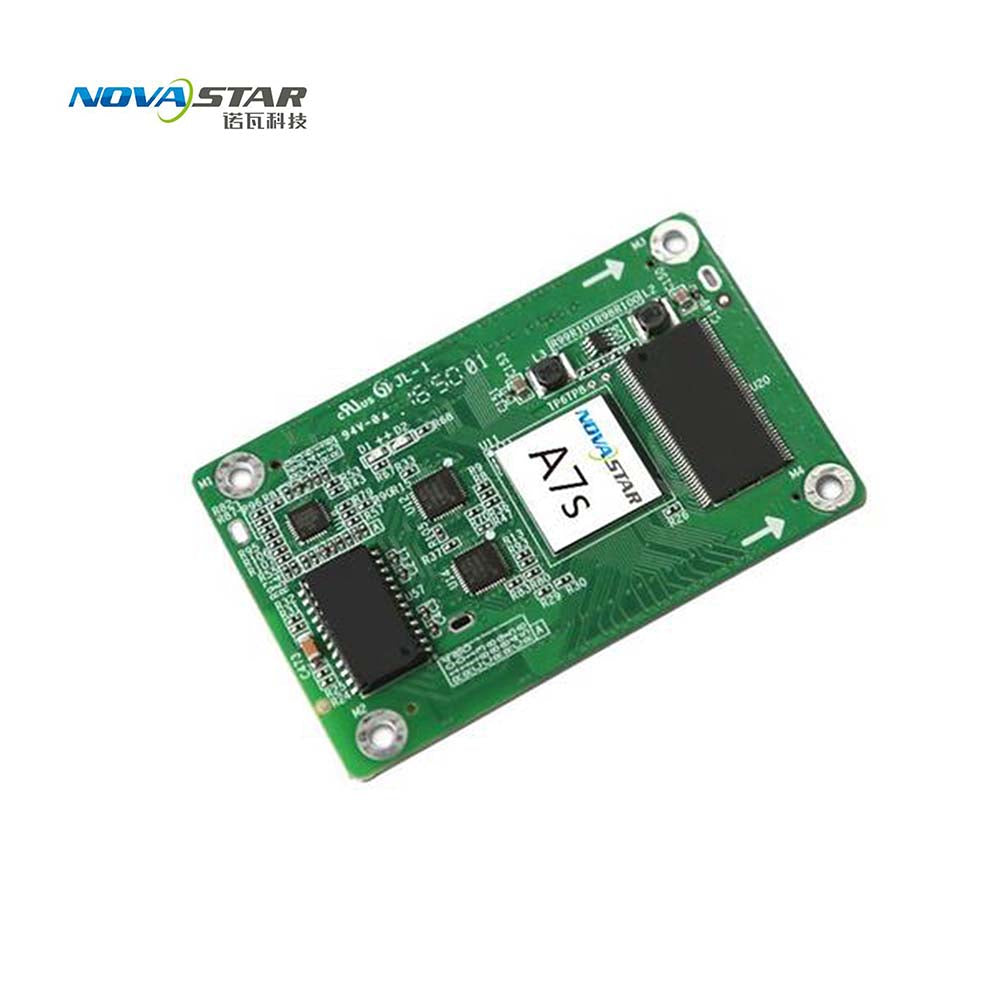

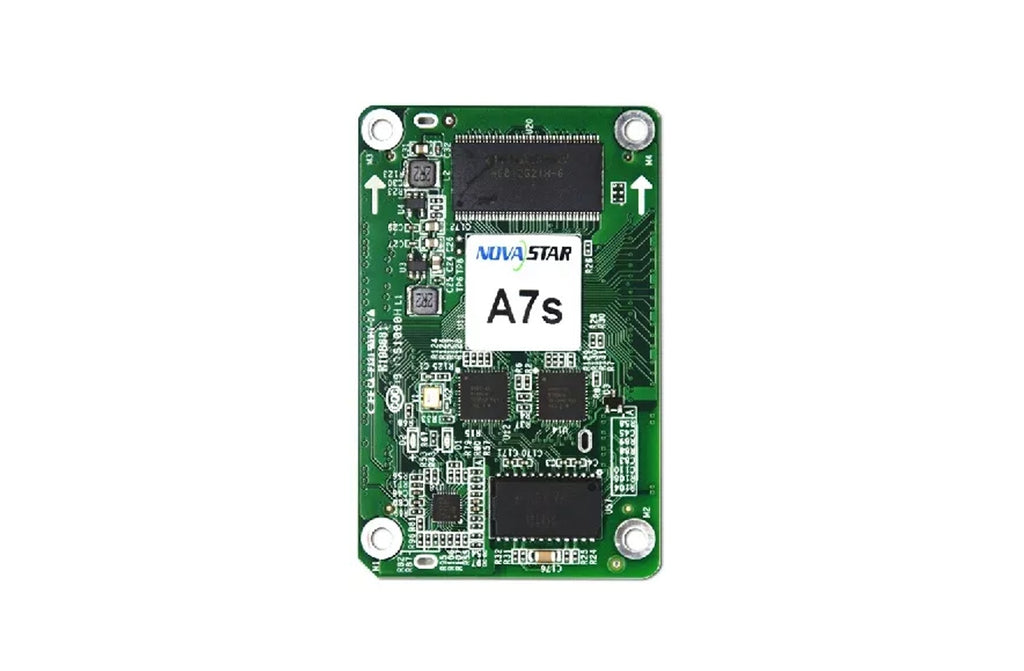

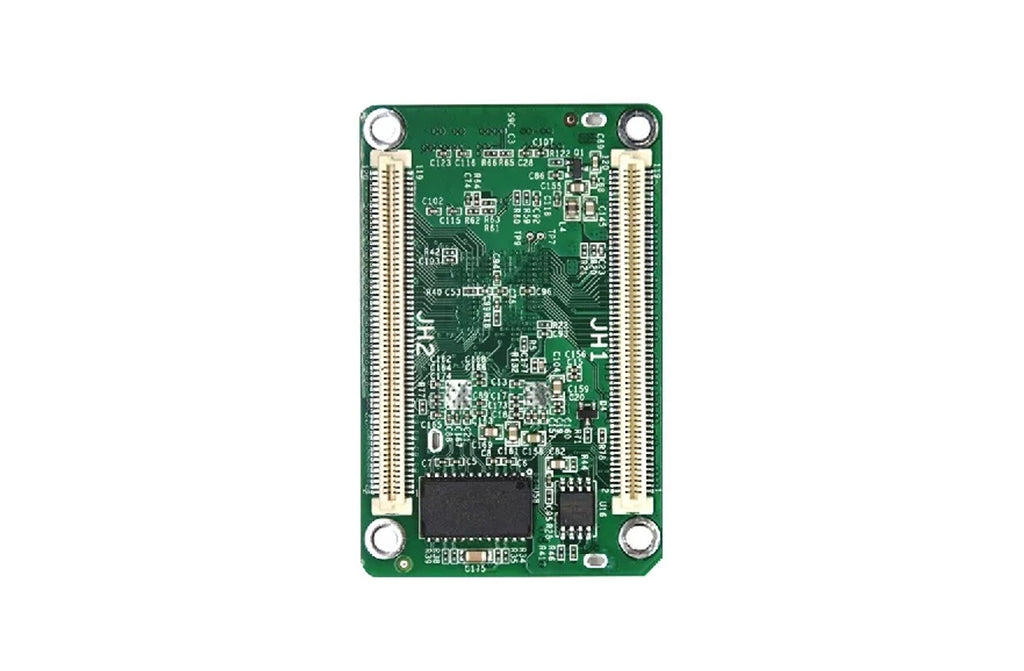

LED Receiving CardNovastar A7S Small Size High-end Large LED Screen Receiving Card is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with a single card loading up to 512×256 pixels (PWM IC). It supports up to 32 parallel data groups and 128 serial data groups.
Novastar A7S Small Size High-end Large LED Screen Receiving Card Features:
Novastar A7S Small Size High-end Large LED Screen Receiving Card Parameter
|Maximum Loading Capacity||512×256 pixels (PWM IC) 384×256 pixels (Common IC)|
|Electrical Parameters||Input voltage||DC 3.3 V–5.5 V|
|Rated current||0.5 A|
|Rated power consumption||2.5 W|
|Humidity||10% RH–90% RH, non-condensing|
|Packing Information||Packing specifications||Each card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards.|
|Packing box dimensions||378.0 mm × 190.0 mm × 120.0 mm|
|Dimensions||70.0 mm × 45.0 mm × 7.3 mm|
|Net Weight||17.3 g|
|EMC Class B|
