The Novastar DH436 Small Spacing Video LED Screen Receiving Card is a small-pitch receiving card from Nova Technology. The single card has a maximum load of 512 × 256 pixels..
Product Type : Small spacing special receiving card
On-load pixel: 512 × 256
RGB data: 24 groups of RGB
Connect the monitoring card:
Light Board Flash:
Onboard: 6 HUB320 (26pin) interfaces
Certification : RoHs
Supports up to 24 sets of RGB parallel data. With 6 HUB320 (26pin) interfaces, it has high stability and high reliability, and is suitable for construction in a variety of environments.
The hardware design and software design of the DH436 takes into account the scenarios of user deployment, operation, and maintenance, making deployment easier, more stable, and more efficient.
Novastar DH436 Small Spacing Video LED Screen Receiving Card Features:
Support for lighting chromaticity correction
Support fast bright and dark line adjustment
Support for 3D functions
Support RGB independent Gamma adjustment
Support for Mapping function
Support receiving card pre-stored screen settings
Support temperature and voltage monitoring
Support box liquid crystal display
Support error monitoring
Support firmware program and configuration parameters readback
Support loop backup, configuration parameter double backup, dual program backup

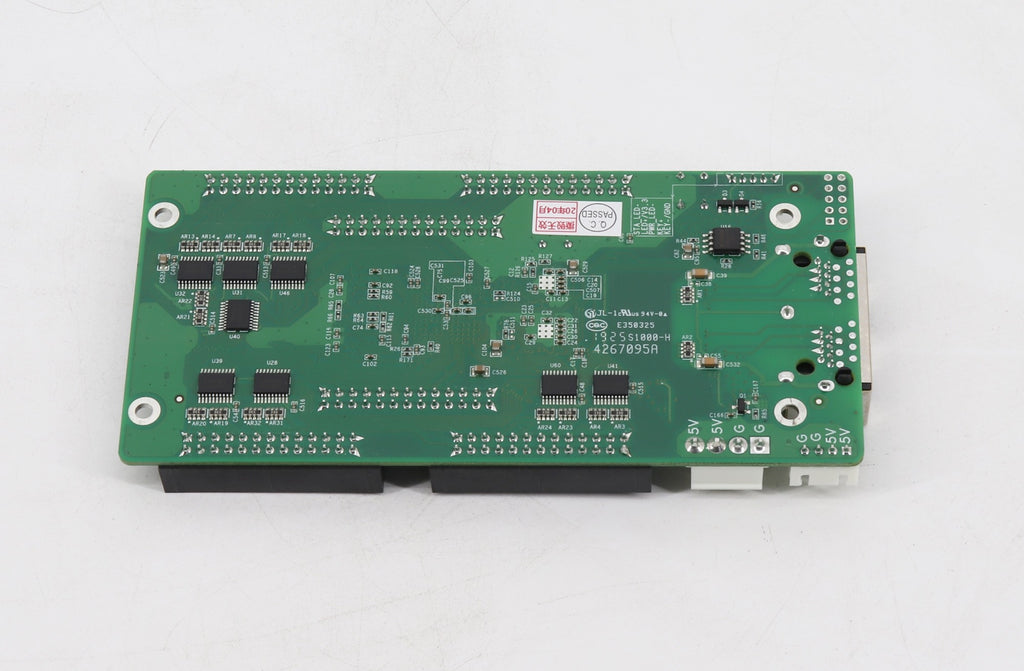

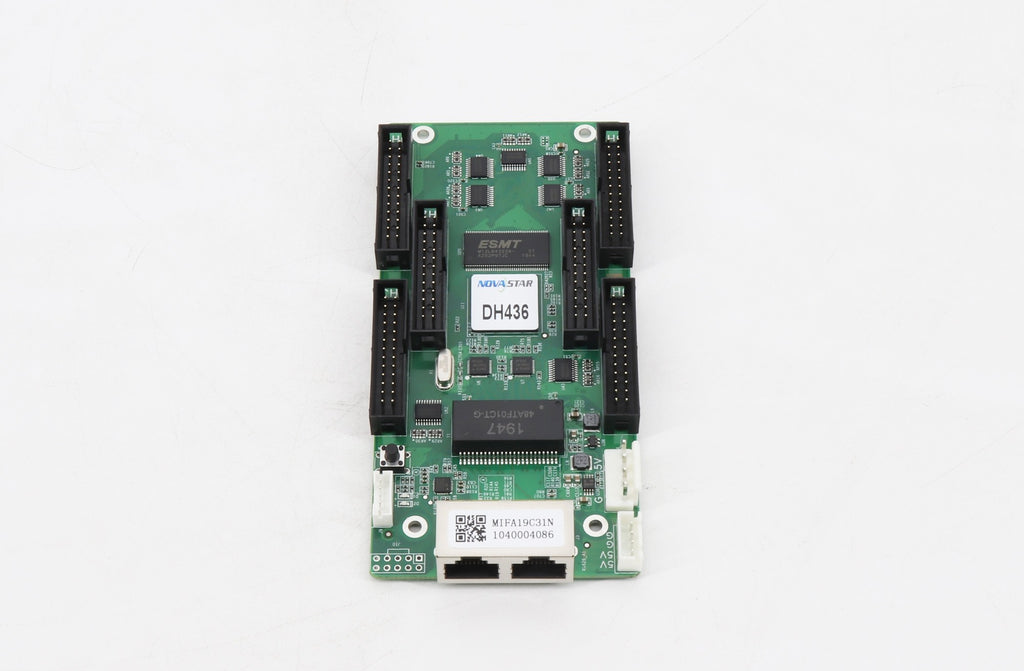

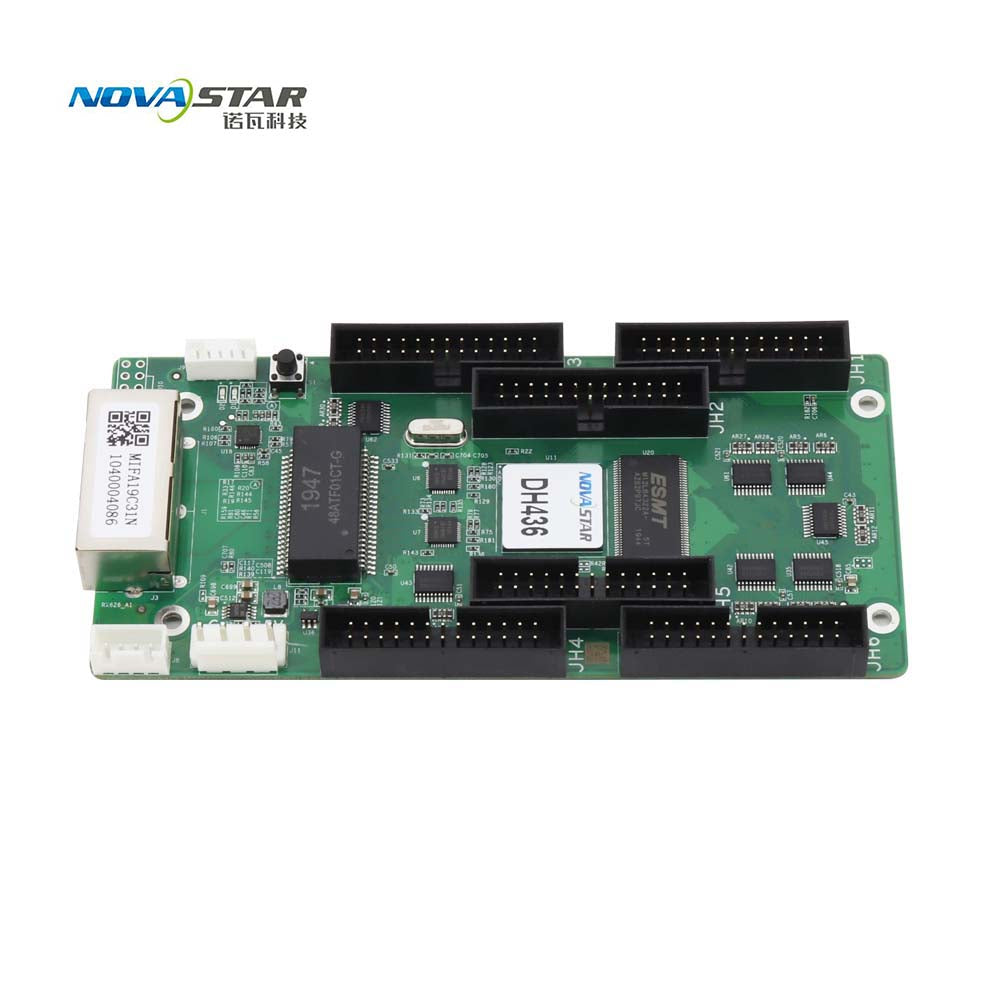

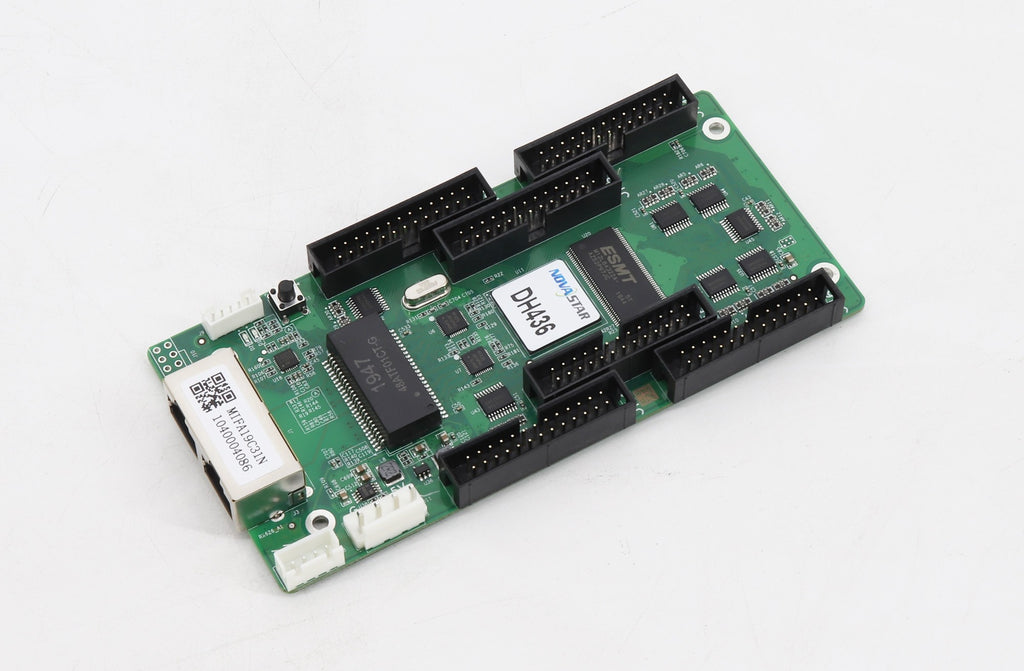

More Pictures of Novastar DH436 Small Spacing Video LED Screen Receiving Card
