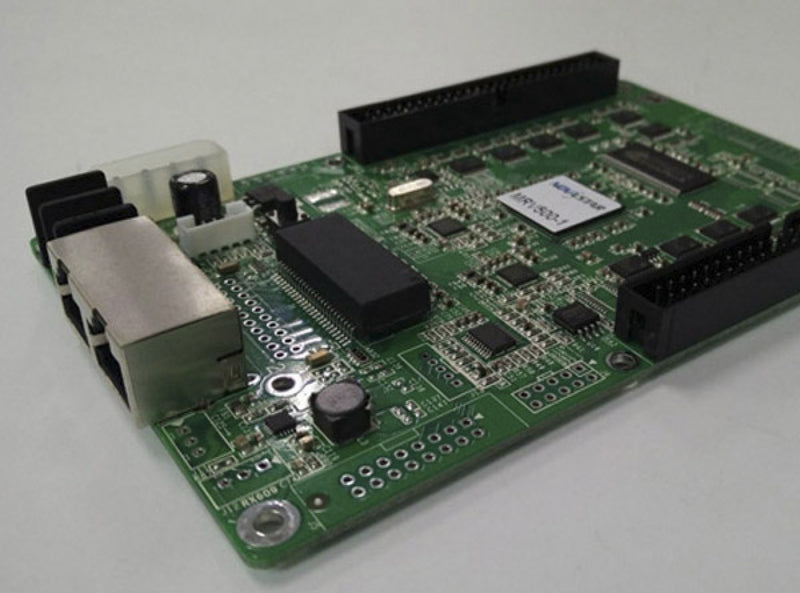

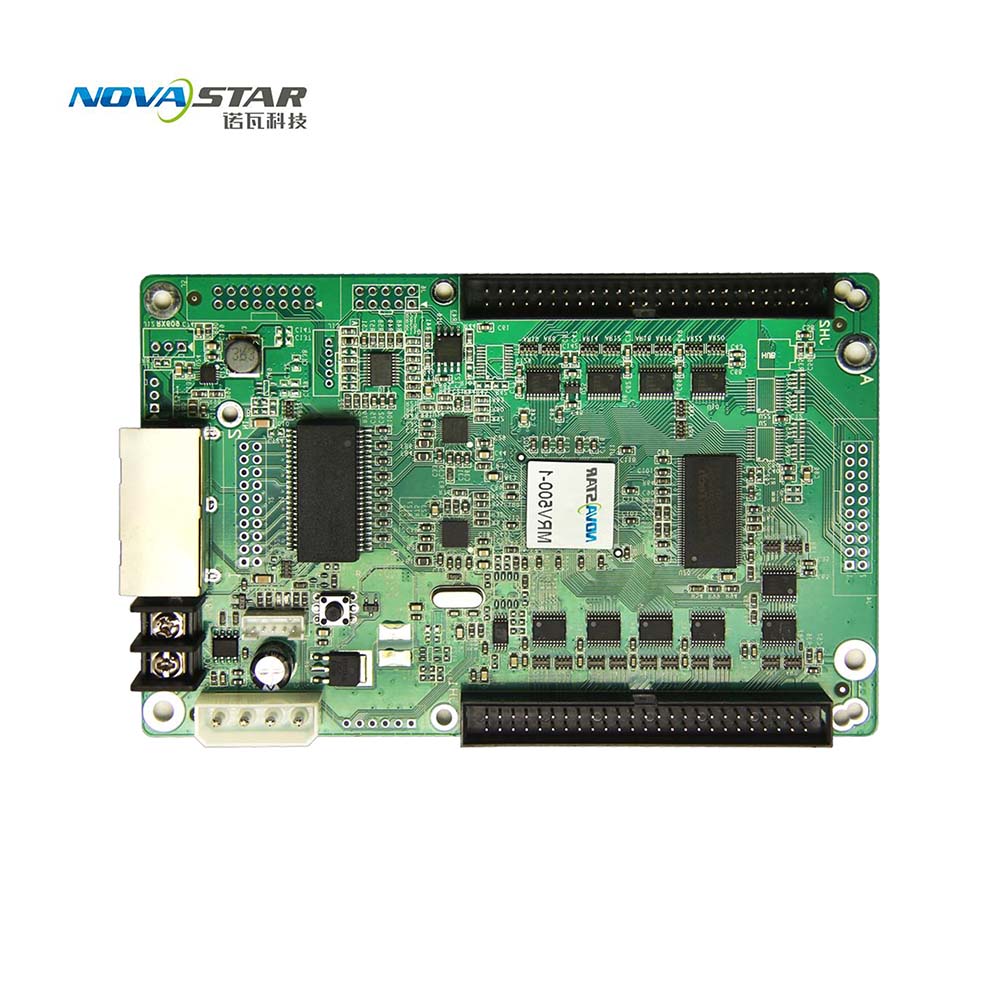

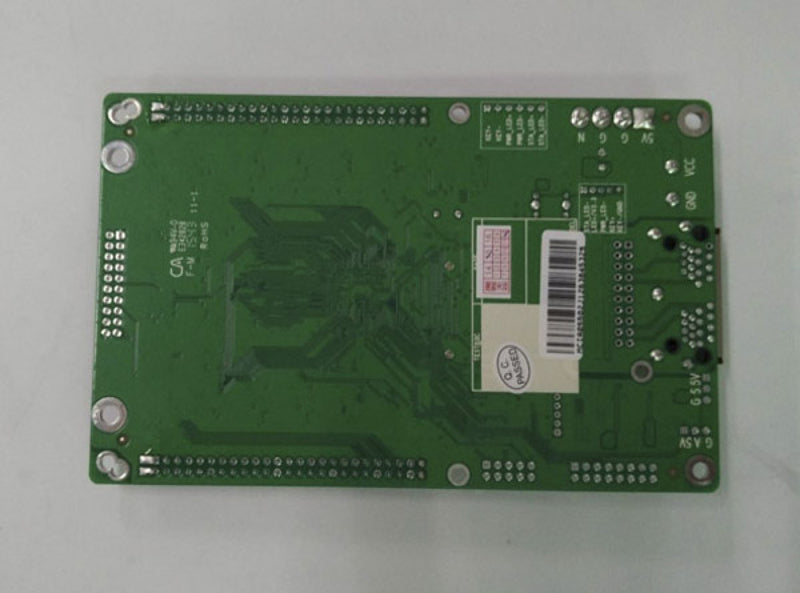

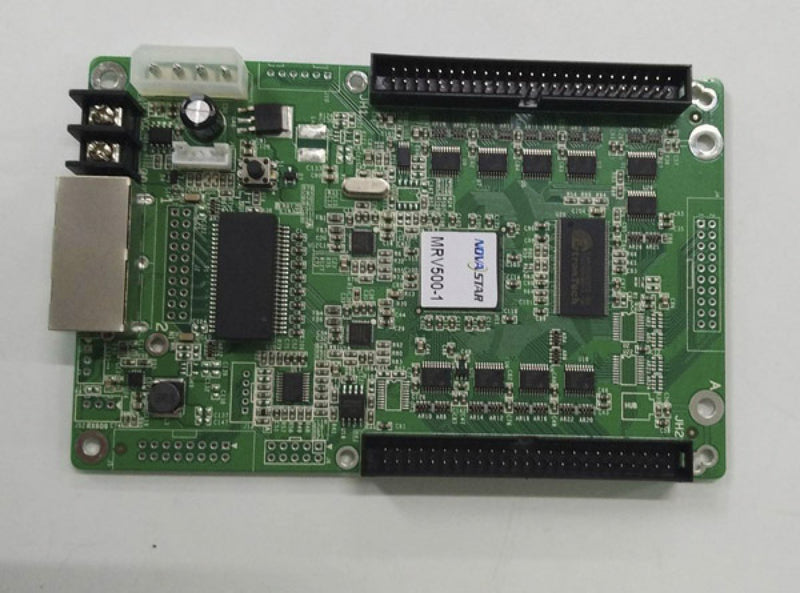

Novastar MRV500-1 LED receiver card is the EMC version of Novastar MRV300 with its effective reduction of the electromagnetic radiation of the whole LED display system.
Its features are as follows:
1) Single card outputs 16-group of RGBR 'data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256x226;
5) Support configuration file readback;
6) Support temperature monitoring;
7) Support Ethernet cable communication status detection;
8) Support power supply voltage detection;
9) Support high gray-scale high-refresh the high and low brightness mode refresh;
10) Support pixel by pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED;
11) Support pre-store picture setting;
12) Comply with EU CE-EMC Class B standard;
13) Comply with RoHS standard.
