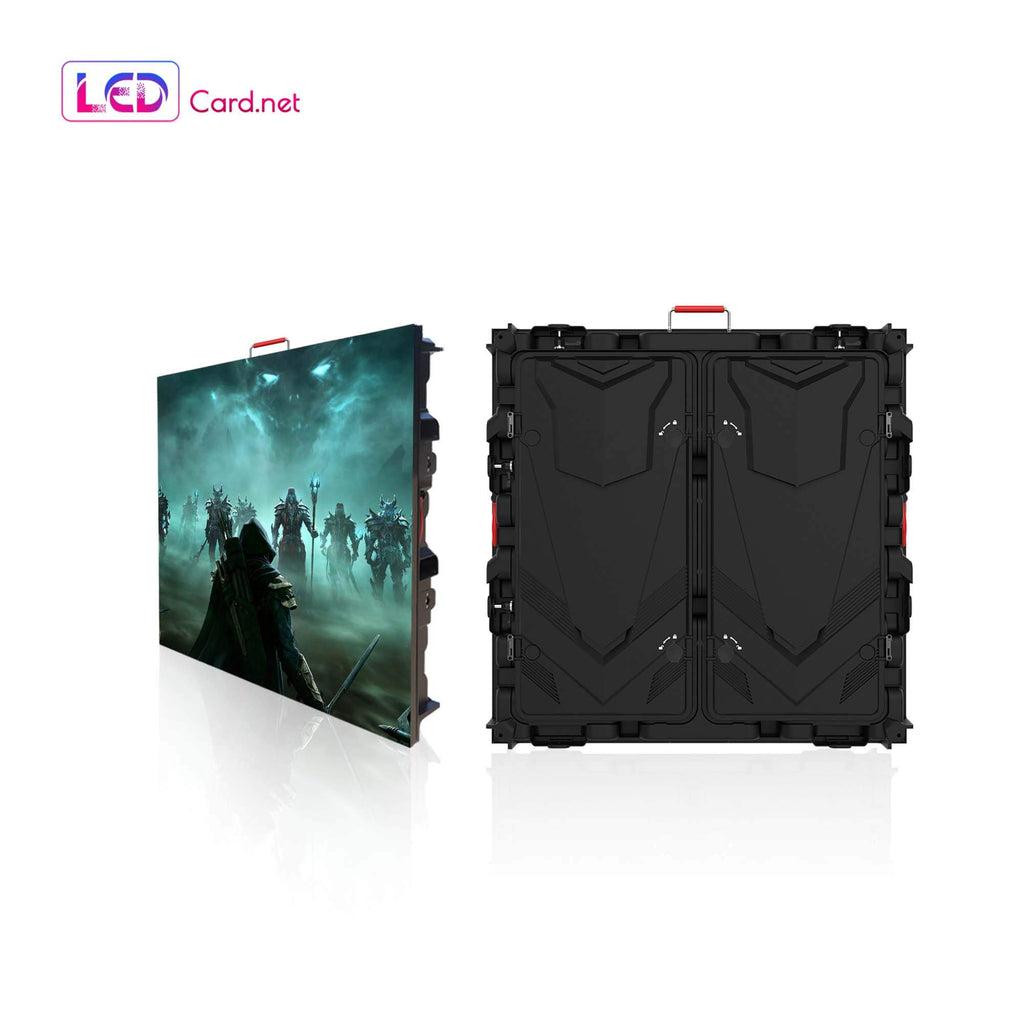

P16 Outdoor Fixed Installation DIP LED Panel 960 x 960 mm


Power Supply Type: Standard
Price:
Sale price$758.00

Description

P16 Outdoor LED Screen Display Front & Back Service

Pixel Pitch 16mm DIP

Panel Size 960 x 960 mm/IP65/Brightness 7500nit/Refresh Rate1920hz

Key Features

  • Outdoor Fixed Installation
  • Die-casting Aluminum
  • Front & Rear Service
  • Price Included Power Supply, Receiver Cards, Signal Cable
  • Lead Time: 10-20 Days
  • Support Custom Made Solution (Please email us your requirement if has special needs)

    Specifications

    Pixel Pitch 10 mm 16 mm
    LED Configuration DIP346 DIP346

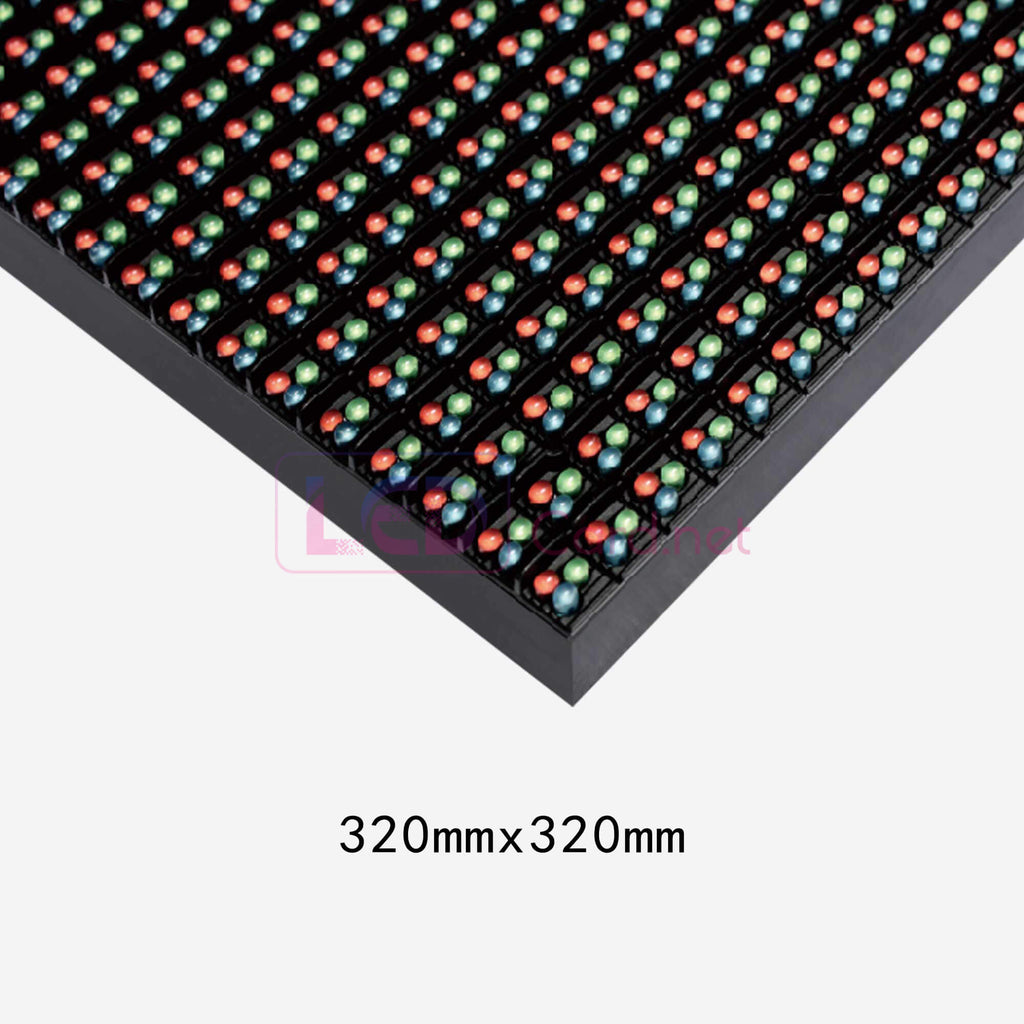

    Module Size(WxH)  320 x 320 mm 320 x 320 mm

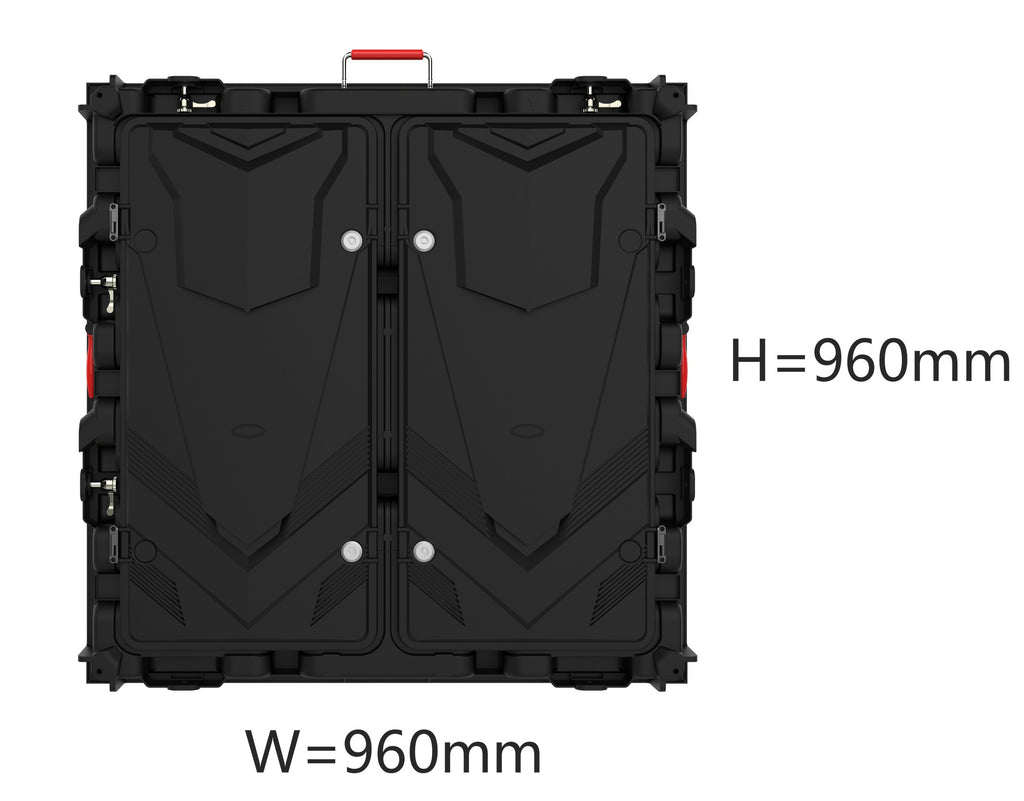

    Panel Dimension  960 x 960 mm 960 x 960 mm
    Panel Dimension (Inch) 37.79"x37.79" 37.79"x37.79"
    Panel Resolution (H x V) 96 x 96 60 x 60
    Drive Mode  1/4 Static
    Brightness  7500 cd/m² nits 9000 cd/m² nits
    Color processing (Bit) 16 16
    Grey Level 65536 65536
    Refresh Rate ≥1920 Hz ≥1920 Hz
    Pixel Density(dots/㎡) 10000 3906
    Module Resolution  32 x 32 dots 20 x 20 dots
    Viewing Angle( H/V) 110/45 110/45
    Input Power Frequency(Hz) 50/60 50/60
    Power Consumption  (Avg)(W/㎡) 180 180
    Power Consumption  (Max)(W/㎡) ≤540 ≤540
    Frame Material Die Cast Aluminum Die Cast Aluminum
    Net Weight Per Panel 35 kg 35 kg
    Operational Temp / Humidity -20°-60°C, 10-90% RH
    -4°-122°F, 10-90% RH
    -20°-60°C, 10-90% RH
    -4°-122°F, 10-90% RH
    IP Rating Outdoor IP65 Outdoor IP65
    Maintenance Method Front & Rear Front & Rear
    Warrenty 2 Years 2 Years
    Maintenance Method Front & Rear Front & Rear
    Certifications CE,ETL,FCC,UL CE,ETL,FCC,UL
