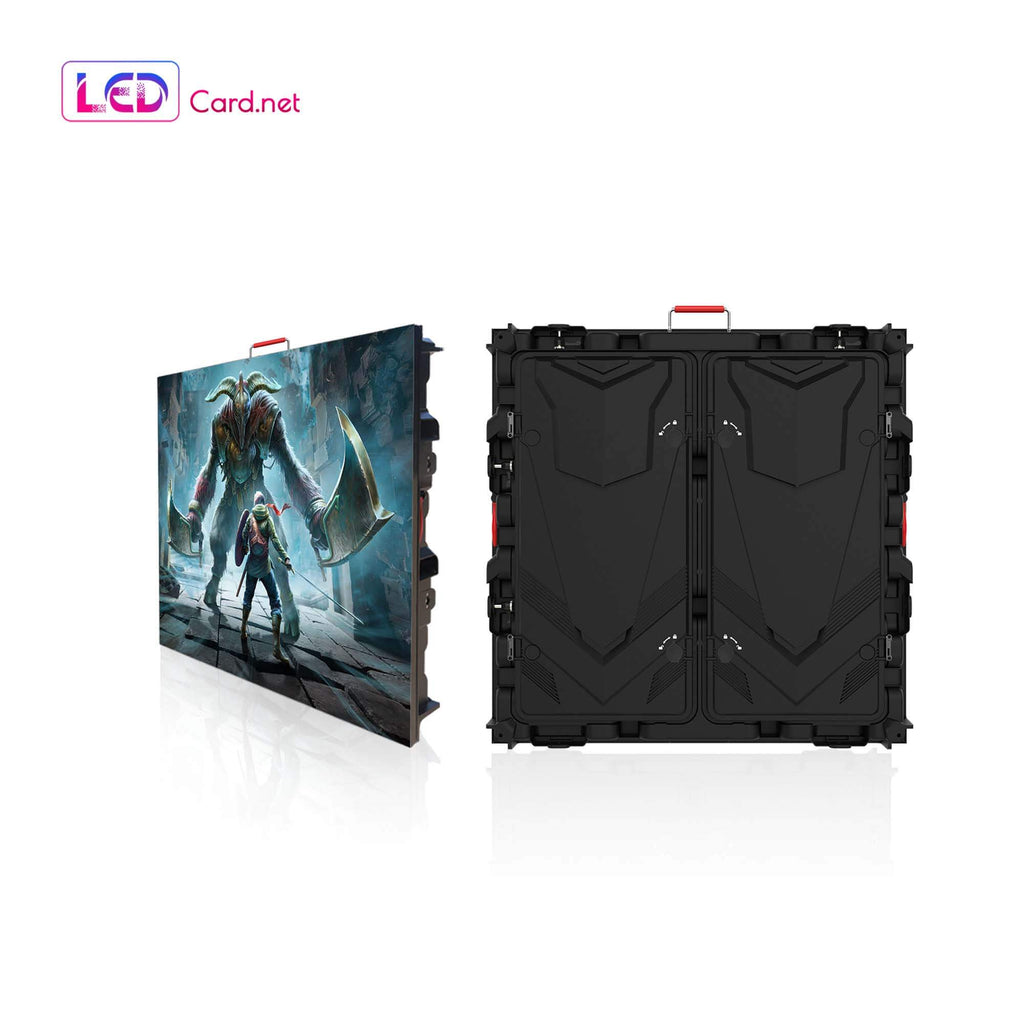

P8 Outdoor Fixed Installation LED Panel 960 x 960 mm

Power Supply Type: Normal
Sale price$751.00


Pixel Pitch 8mm Outdoor LED Screen Display

 Panel Size 960 x 960 mm/IP65/Brightness 6500nit/Refresh Rate1920hz

Key Features

  • Outdoor Fixed Installation
  • Die-casting Aluminum
  • Front & Rear Service
  • Price Included Power Supply, Receiver Cards, Signal Cable
  • Lead Time: 10-20 Days
  • Support Custom Made Solution
  • (Please email us your requirement if has special needs)


    Pixel Pitch SMD 8 mm
    LED Configuration SMD2727
    Module Size(WxH)  320 x 320 mm
    Panel Dimension  960 x 960 mm
    Panel Dimension (Inch) 37.79"x37.79"
    Panel Resolution (H x V) 120 x 120
    Drive Mode  1/4
    Brightness  6500 cd/m² nits
    Color processing (Bit) 16
    Grey Level 65536
    Refresh Rate ≥1920 Hz
    Pixel Density(dots/㎡) 15625
    Module Resolution  40 x 40 dots
    Viewing Angle( H/V) 140/140
    Input Power Frequency(Hz) 50/60
    Power Consumption  (Avg)(W/㎡) 277
    Power Consumption  (Max)(W/㎡) ≤830
    Frame Material Die Cast Aluminum
    Weight Per Panel 34 kg
    Operational Temp / Humidity -20°-60°C, 10-90% RH
    -4°-122°F, 10-90% RH
    IP Rating Outdoor IP65
    Maintenance Method Front & Rear
    Warrenty 2 Years
    Maintenance Method Front & Rear
    Certifications CE,ETL,FCC,UL
