Description

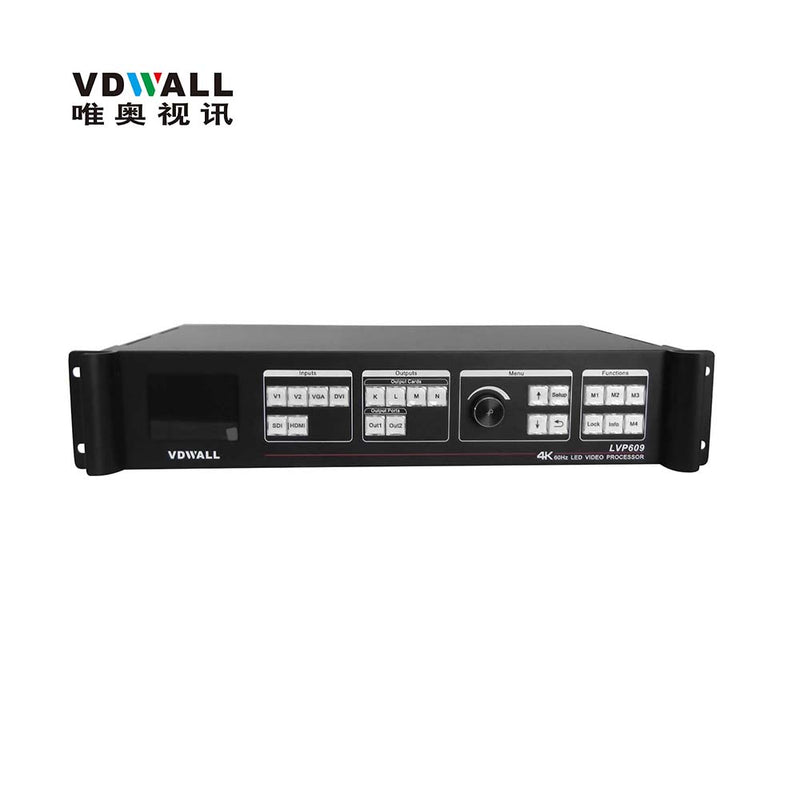

VDWall LVP609 4K/2K 60HZ LED HD Video Processor Features:
1.4K2K_60Hz real 4K pole-clear LED video processor, advanced interlaced motion image adaptive processing technology, moving images without tailing and saw-tooth;
2. Within 4K2K range, the LED screen shows point-to-point synchronization display; supporting Promise zoom;the maximum load of one single machine is 16 million pixels, without cumbersome software settings;
3. Input: Ultra HD + HD + SD, analog + digital; HDMI2.0 (4K2K_60Hz) x 1, CVBS x 2, VGA x 1, DVI x 1, SDI / HD-SDI x 1;the seamless switch , fade in and out switch among them
4. Output: DVI digital full HD, up to 8 route, single-port resolution of 1920 x 1080_60Hz
5. Synchronous monitoring, you can use the monitor to monitor the 1080P 4K2K_60Hz input screen;
6. A variety of pre-stored mode and a key call, mode calling use seamless or fade in and fade out switch
7. Convenient panel key operation or RS232 / USB / LAN control settings.

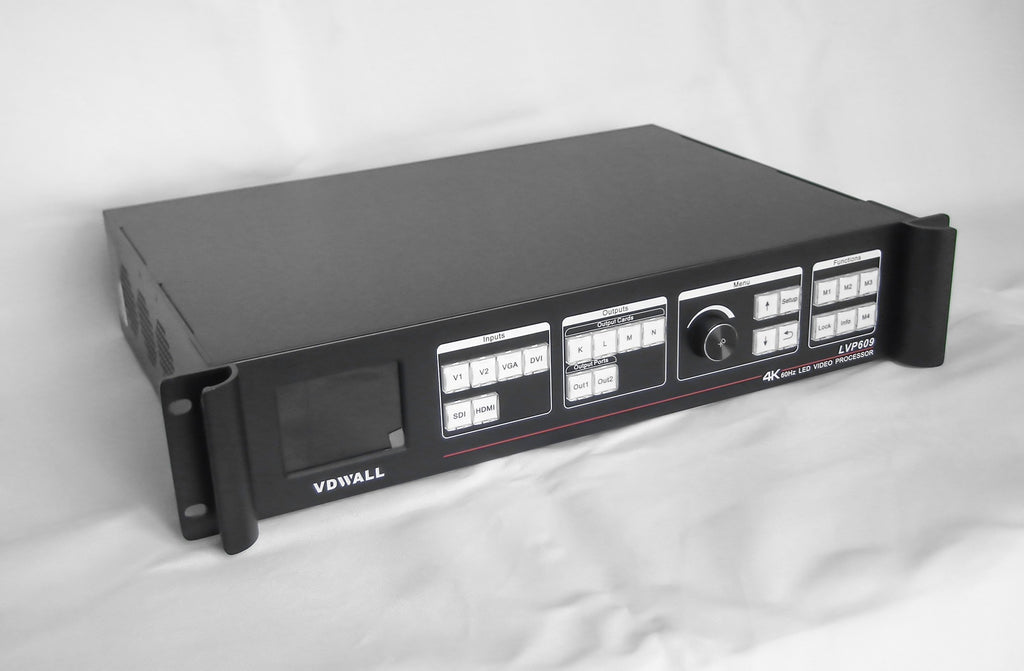

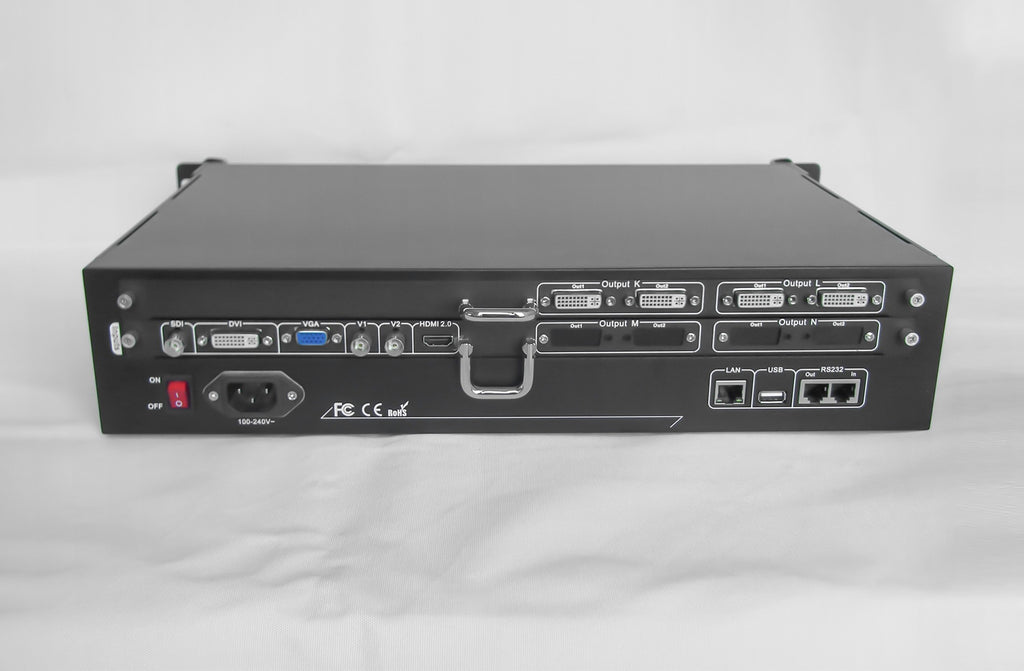

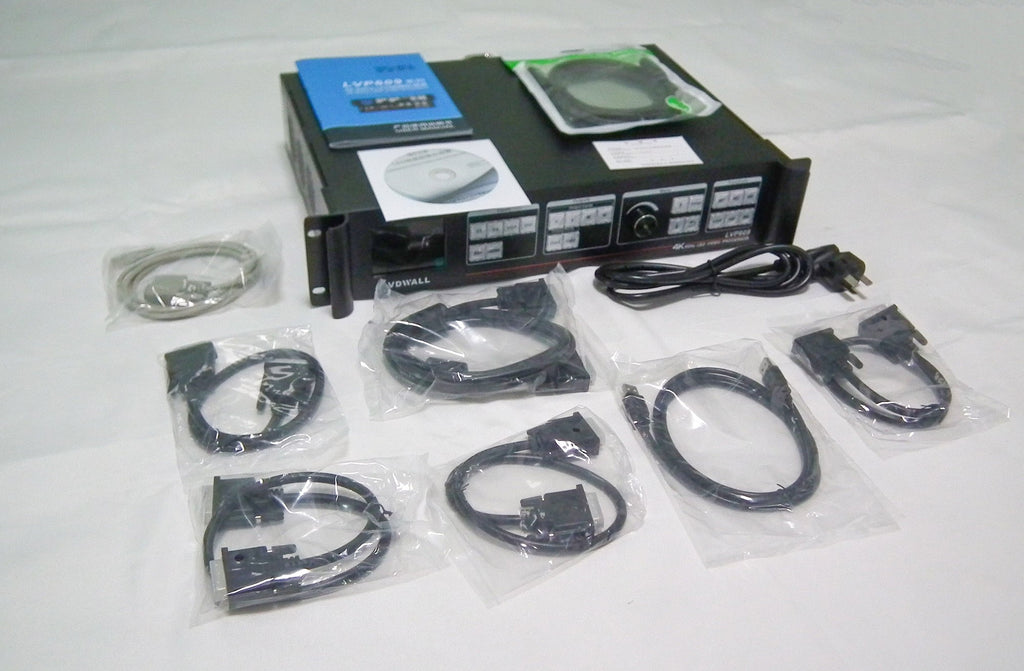

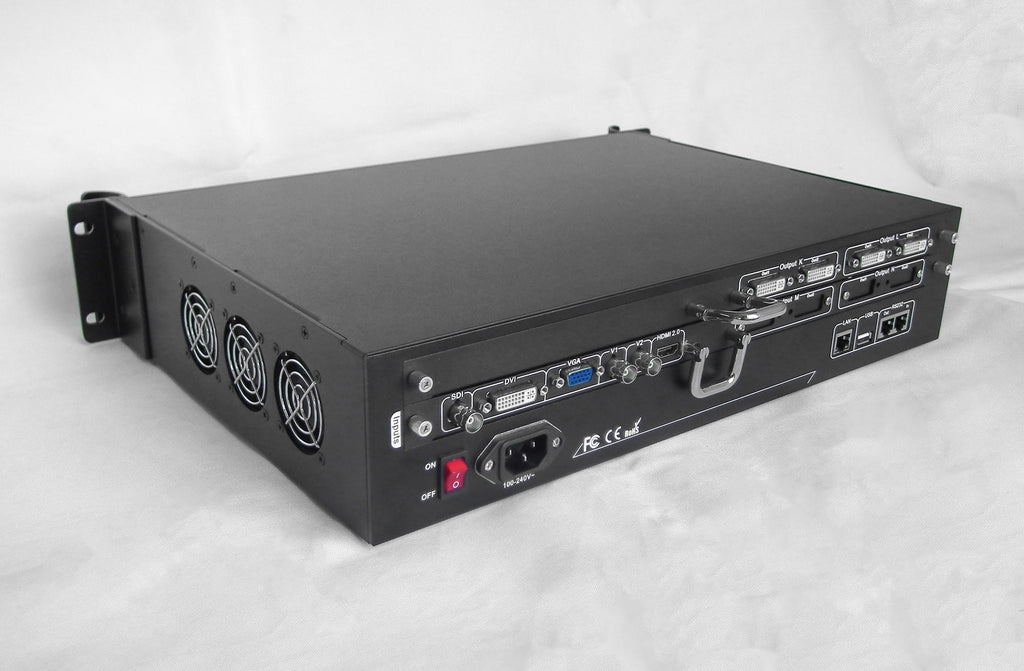

More pictures of VDWall LVP609 4K/2K 60HZ LED HD Video Processor:
LVP609 connection diagram:
VDWall LVP609 4K/2K 60HZ LED HD Video Processor Parameter:
Inputs |
||
Quantity /Type |
2×Video 1×VGA(VESA) 1×DVI(VESA) 1×HDMI 2.0((VESA/CEA-861) 1×SDI(SDI/HD-SDI/3G-SDI) |
|
Video system |
PAL/NTSC |
|
Composite video amplitude Impedance |
1V(p_p)/ 75Ω |
|
VGA Format |
PC(VESA) |
≤1920×1200_60Hz |
VGA amplitude Impedance |
R、G、B = 0.7 V(p_p)/ 75Ω |
|
DVI Format |
PC(VESA) |
≤1920×1200_60Hz |
HDMI Format(HDCP2.0) |
PC(VESA) |
≤3840×2160_60Hz |
HDMI2.0(CEA-861) |
||
SDI Format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
Input connectors |
Video: BNC/ 75Ω HDMI:HDMI ATYPE SDI:BNC/ 75Ω |
|
Output |
||
Quantity /Type |
8×DVI |
|
DVI Format |
1920×1080_60Hz |
|
Output connectors |
DVI:24+1 DVI_D |
|
Others |
||
Control |
RS232/USB/LAN |
|
Input voltage |
100-240VAC 50/60Hz |
|
Overall power consumption |
≤70W |
|
Environment temperature |
0-45℃ |
|
Environment humidity |
15-85% |
|
Product size |
483(L) x 338(W) x94(H)mm |
|
Carton size |
540(L) x 400(W) x 180(H)mm |
|
Net weight |
5.95Kg |
|
Gross weight |
8.8K |
