VDWALL LVP615D HD Video Processor


Price:
Sale price$590.00

Description

Videowall LVP615D HD Video Processor Key Features:

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
6. User define output format to reach maximal horizontal width 3840 or vertical height 1920
7. User define DVI EDID to realize pixel-to-pixel display
8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi



Videowall LVP615D HD Video Processor Parameter:

Inputs

Nums / Type

3×CVBS  1×S-Video
1×YPbPr
3×VGA(RGBHV)
2×DIV/HDMI(1.3a with HDCP)
1×DVI-1(HDMI)

Video system

PAL / NTSC

Composite Video
Scope / Impedance

1V(p_p)/ 75Ω

S-video Scope /
Impedance

Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω

VGA Format

PC(VESA)

≤2048x1152@60Hz

VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI Format

SD / HD(CEA-861)

≤1920x1080@60Hz

PC(VESA)

≤2048x1152@60Hz

HDMI 1.3 Format( HDCP )

SD / HD(CEA-861)

≤1920x1080@60Hz

PC(VESA)

≤2048x1152@60Hz

YPbPr Format

SD / HD(CEA-861)

≤1920x1080@60Hz

YPbPr Scope / Impedance

Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω

SDI format

SDI-SMPTE 259M-C

576i @50Hz

480i @60Hz

HD-SDI
3G-SDI format

HDSDI-SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M

≤1920 x 1080@50Hz / 60Hz

AUDIO Scope / Impedance

2.0Vp-p / 10KΩ

Input Connectors

VGA:15pin D_Sub( Female )
DVI:24+1 DVI_D
YPbPr: BNC×3
Composite:BNC
S-VIDEO:4pin mini DIN( Female )
SDI / HD-SDI / 3G-SDI:BNC

Outputs

Nums / Type

1×VGA(RGBHV)
2×DVI

VGA / DVI Format

1024×768@60Hz / 75Hz
1280×1024@60Hz / 75Hz
1600×1200@60Hz
1920×1080@50Hz / 60Hz
1366×768@60Hz
1440×900@60Hz
2048×1152@60Hz
2304x1152@60Hz
2560x816@60Hz

VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

Output Connectors

VGA OUT:15pin D_Sub( Female )
DVI OUT1:24+5 DVI_I
DVI OUT2:<S, ?="" e="," ?,,="" styl,="" lang,="EN-US" n="" pa,="" 6.0pt?="" mso-bidi-font-size:="" 14px;="" font-size:="" #000000;="" color:="" 0pt;="" letter-spacing:="" arial;="" ?font-fami,="" ly:="" ,="">24+1 DVI_D

Others

Control

Panel Button / Knob / RS232

Power

100-240VAC  35W  50 / 60Hz

Operating Temp

5-40 ℃

Humidity

15-85%

Dimensions(Package)

145 mm (height) ×370mm (width) ×535mm (length)

Weight(G.W.)

5.0 Kg

Weight(N.W.)

3.2Kg

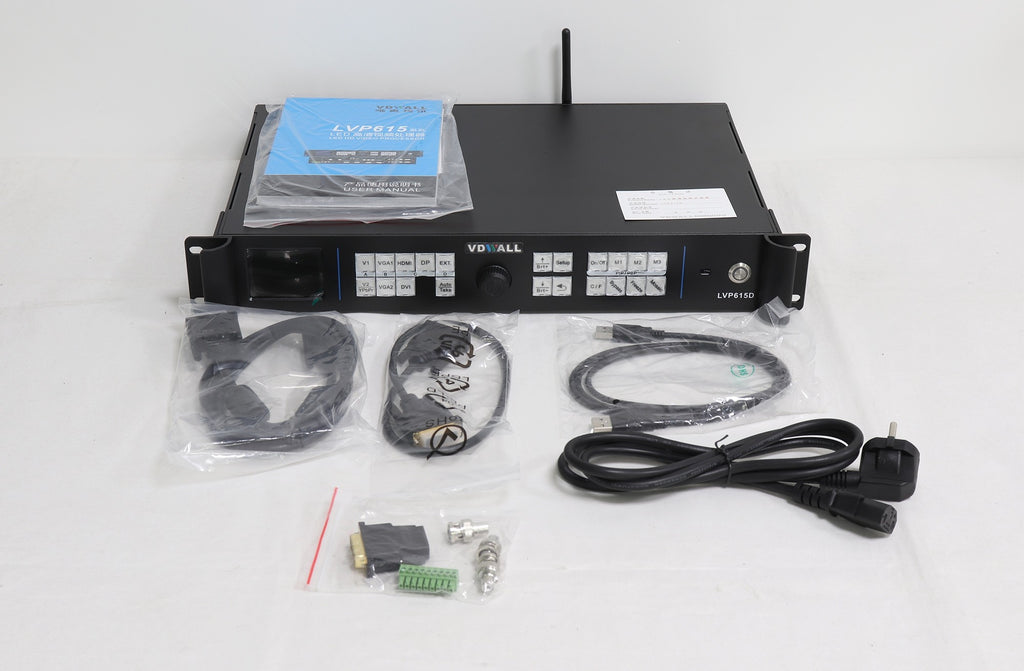

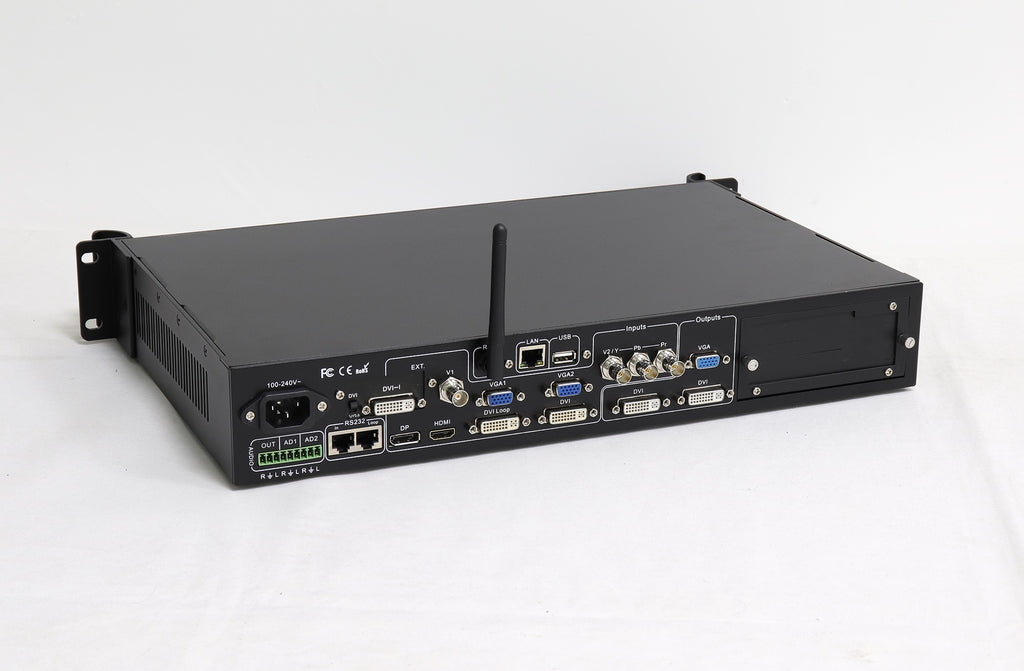

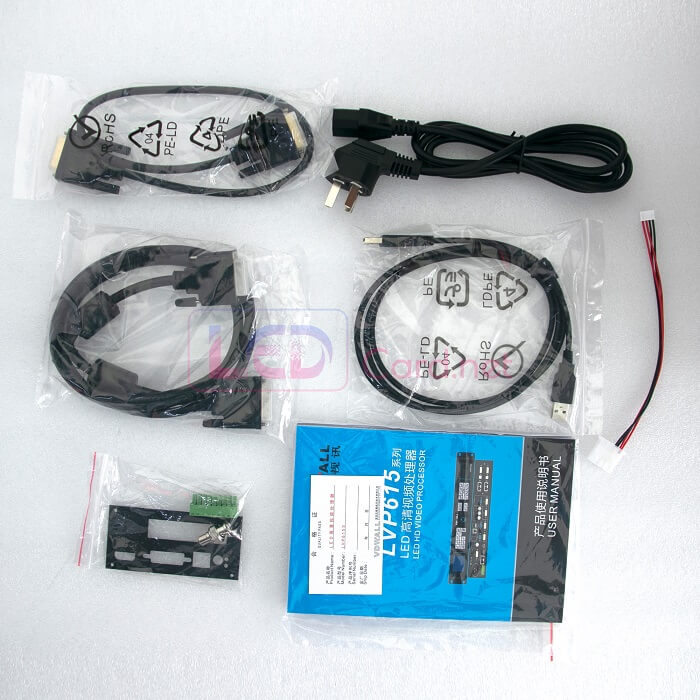

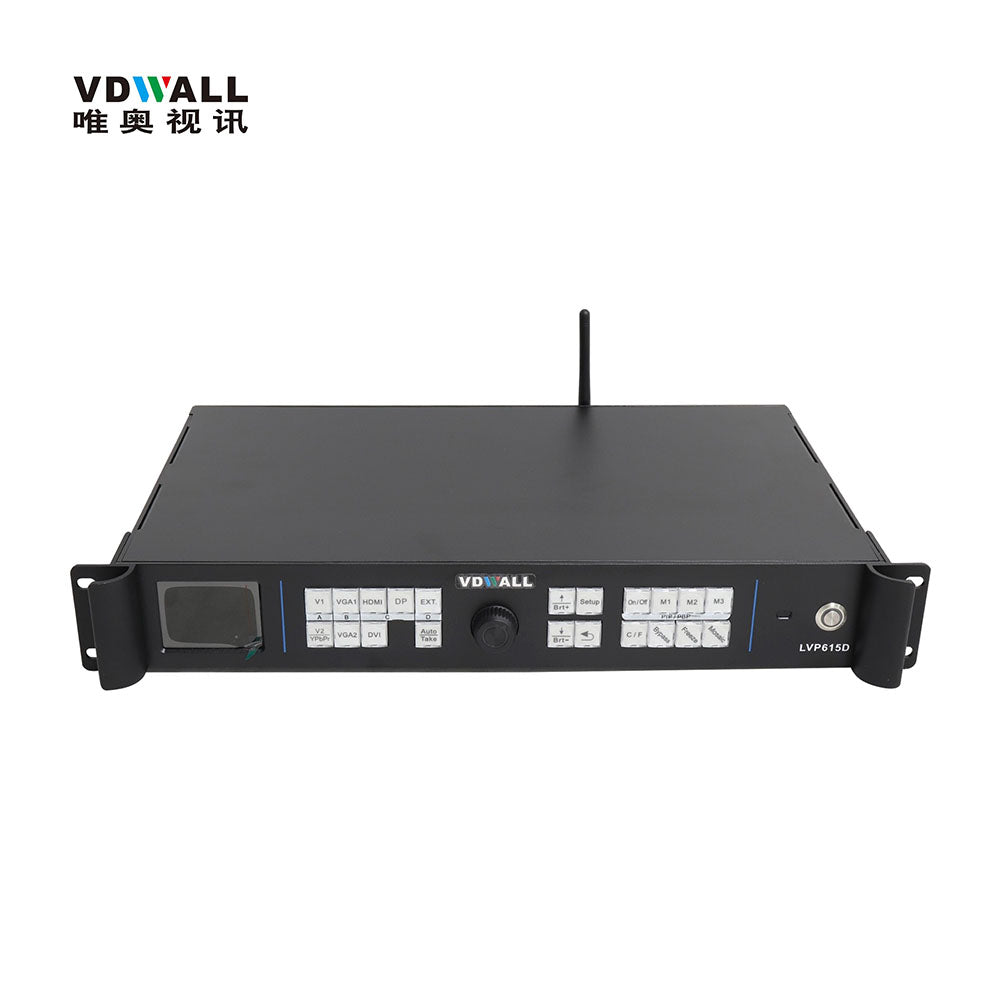

More Pictures of VDWALL LVP615D HD Video Processor

VDWALL LVP615D HD Video Processor

VDWALL LVP615D HD Video Processor

VDWALL LVP615D HD Video Processor

VDWALL LVP615D HD Video Processor

VDWALL LVP615D HD Video Processor
